Sensor-Fuel Pressure (Standard) Connector End View (D3293A)

Harness-Family: Transmission

Color: BLACK

Gender: FEMALE

Part Number: 4-1488991-1

Part Description: Not Available

Connector No: D3293A

Option: Standard

Repair Kit Part Number: 68137864AC

Cavity Count: 3

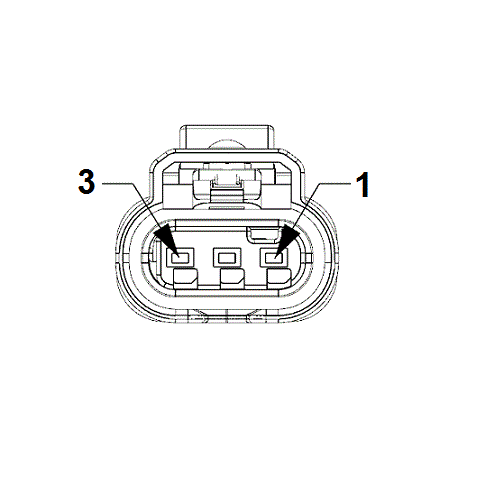

Fig 1: Sensor-Fuel Pressure Connector End View (Standard)

Courtesy of CHRYSLER

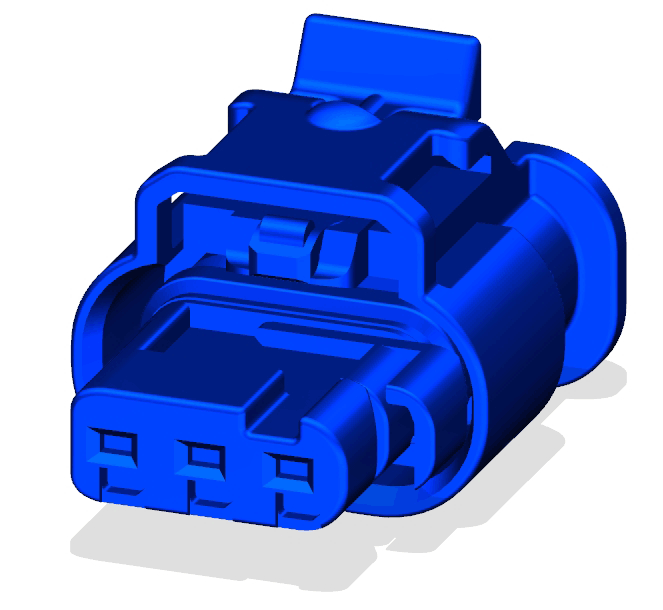

Fig 2: Sensor-Fuel Pressure Isometric View (Standard)

Courtesy of CHRYSLER

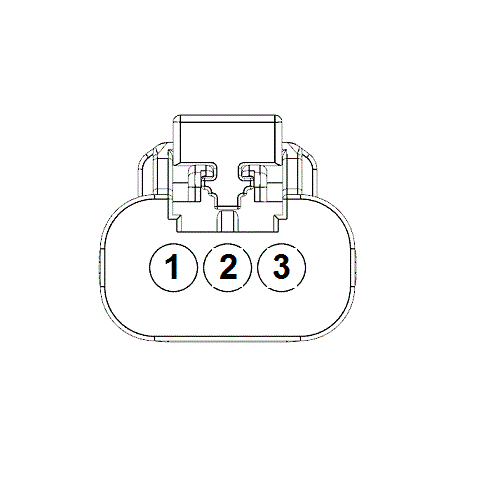

Fig 3: Sensor-Fuel Pressure Wire Insertion View (Standard)

Courtesy of CHRYSLER

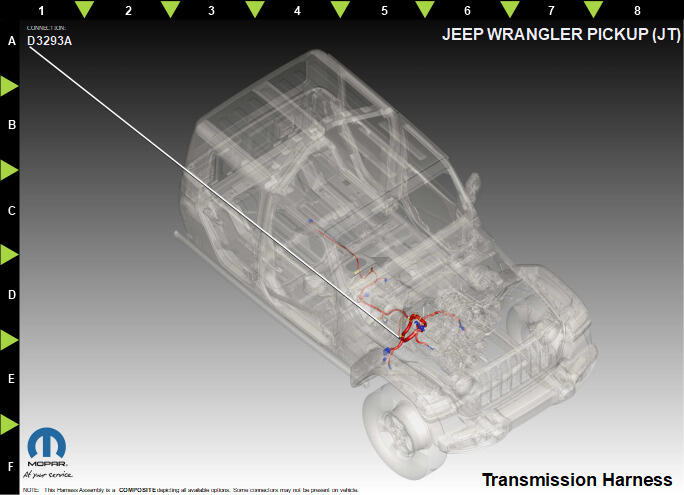

Fig 4: Sensor-Fuel Pressure Component Location View (Standard)

Courtesy of CHRYSLER

Pin	Circuit	Wire Color	Gauge/Size	Function	Option
1	F856	YE/PK	0.35	5 VOLT SUPPLY	3.0L DIESEL
1	K859	BN/DB	0.35	5 VOLT SUPPLY	3.6L GAS
2	K179	GY/GN	0.35	FUEL PRESSURE SIGNAL 2	3.0L DIESEL
2	K181	BN/YE	0.35	FUEL PRESSURE SIGNAL	3.6L GAS
3	K917	BN/BG	0.35	SENSOR GROUND	3.6L GAS
3	K916	BN/OG	0.35	SENSOR GROUND	3.0L DIESEL
