Sensor-Exhaust Pressure 1/1 (Standard) Connector End View (D2432A)

Harness-Family: Engine_Diesel1

Color: BLACK

Gender: FEMALE

Part Number: 1-1418448-1

Part Description: Not Available

Connector No: D2432A

Option: Standard

Repair Kit Part Number: TBD Grp38-2

Cavity Count: 3

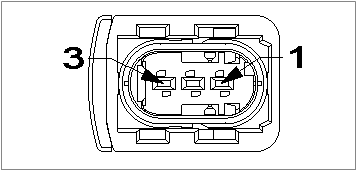

Fig 1: Sensor-Exhaust Pressure 1/1 Connector End View (Standard)

Courtesy of CHRYSLER

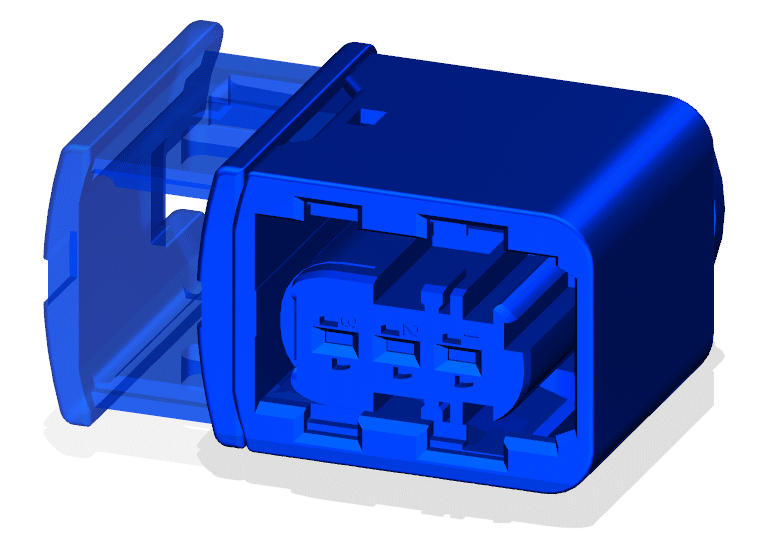

Fig 2: Sensor-Exhaust Pressure 1/1 Isometric View (Standard)

Courtesy of CHRYSLER

Fig 3: Sensor-Exhaust Pressure 1/1 Wire Insertion View (Standard)

Courtesy of CHRYSLER

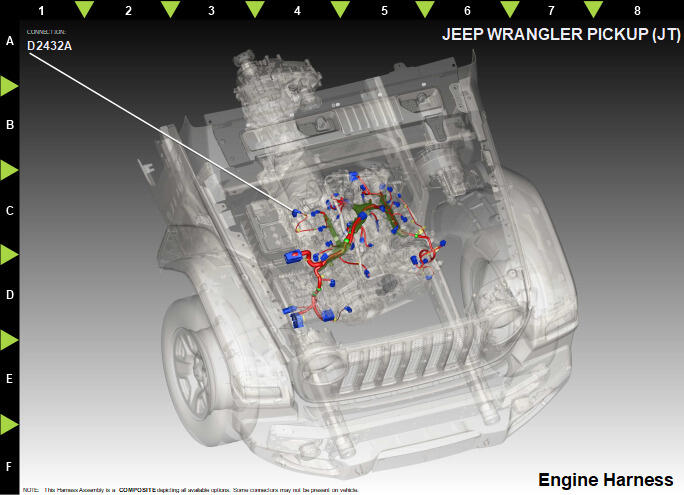

Fig 4: Sensor-Exhaust Pressure 1/1 Component Location View (Standard)

Courtesy of CHRYSLER

Pin	Circuit	Wire Color	Gauge/Size	Function	Option
1	K371	GY	0.50	5V SUPPLY	N/A
2	K690	BK/RD	0.50	COMBO PRESS AND TEMP SNSR RTN	N/A
3	K373	WH/GN	0.50	EXHAUST GAS PRESSURE SENSOR SIGNAL	N/A
