Sensor-Exhaust Gas Temperature 1/2 (Standard) Connector End View (D1642A)

Harness-Family: Transmission

Color: BLACK

Gender: MALE

Part Number: 1-1703498-1

Part Description: Not Available

Connector No: D1642A

Option: Standard

Repair Kit Part Number: 68235875AA

Cavity Count: 2

Fig 1: Sensor-Exhaust Gas Temperature 1/2 Connector End View (Standard)

Courtesy of CHRYSLER

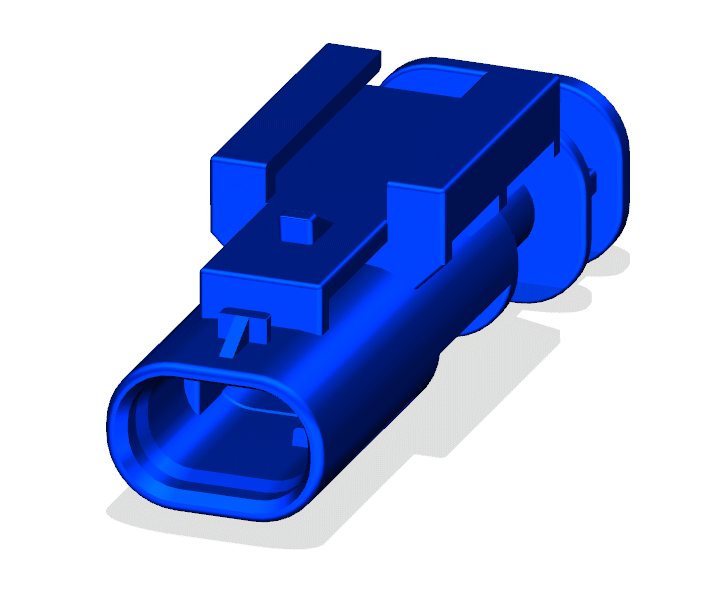

Fig 2: Sensor-Exhaust Gas Temperature 1/2 Isometric View (Standard)

Courtesy of CHRYSLER

Fig 3: Sensor-Exhaust Gas Temperature 1/2 Wire Insertion View (Standard)

Courtesy of CHRYSLER

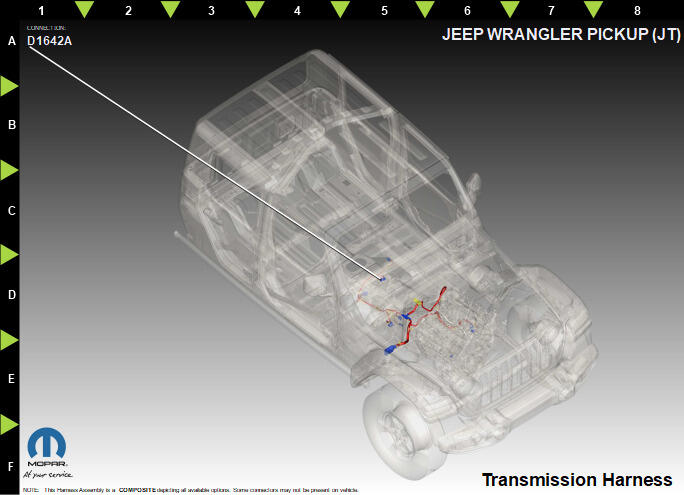

Fig 4: Sensor-Exhaust Gas Temperature 1/2 Component Location View (Standard)

Courtesy of CHRYSLER

Pin	Circuit	Wire Color	Gauge/Size	Function	Option
1	K352	BN/OG	0.50	EGT SIGNAL	N/A
2	K914	BN/WH	0.50	SENSOR GROUND	N/A
