Sensor-Evaporator Temperature (Standard) Connector End View (D1500A)

Harness-Family: HVAC

Color: BLACK

Gender: FEMALE

Part Number: 31067-1010

Part Description: SLEEVE ASS Y WIRE CONN Female

Connector No: D1500A

Option: Standard

Repair Kit Part Number: Terminal Kits Only

Cavity Count: 3

Fig 1: Sensor-Evaporator Temperature Connector End View (Standard)

Courtesy of CHRYSLER

Fig 2: Sensor-Evaporator Temperature Isometric View (Standard)

Courtesy of CHRYSLER

Fig 3: Sensor-Evaporator Temperature Wire Insertion View (Standard)

Courtesy of CHRYSLER

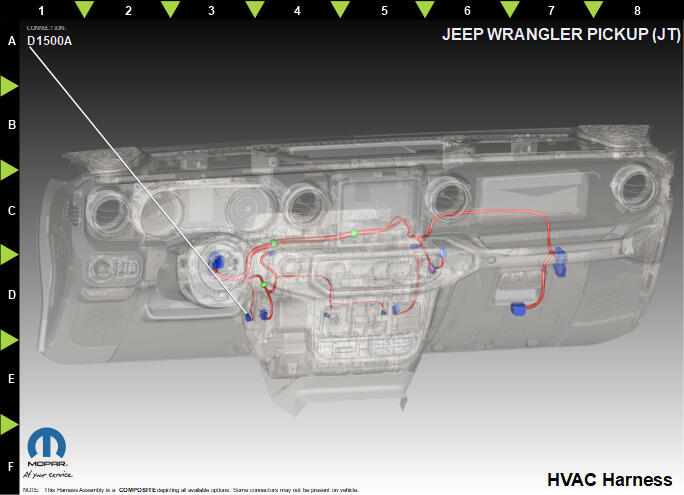

Fig 4: Sensor-Evaporator Temperature Component Location View (Standard)

Courtesy of CHRYSLER

Pin	Circuit	Wire Color	Gauge/Size	Function	Option
1	C919	BU/BK	0.35	TEMP SNSR COMMON RTN	N/A
3	C21	DB/GN	0.35	EVAPORATOR TEMPERATURE SENSOR SIGNAL	N/A
