Sensor-Engine Coolant Temperature (3.6L Gas) Connector End View (D1514A)

Harness-Family: Engine

Color: BLACK

Gender: FEMALE

Part Number: 805-120-531

Part Description: Not Available

Connector No: D1514A

Option: 3.6L GAS

Repair Kit Part Number: 68475547AA

Cavity Count: 2

Fig 1: Sensor-Engine Coolant Temperature Connector End View (3.6L GAS)

Courtesy of CHRYSLER

Fig 2: Sensor-Engine Coolant Temperature Isometric View (3.6L GAS)

Courtesy of CHRYSLER

Fig 3: Sensor-Engine Coolant Temperature Wire Insertion View (3.6L GAS)

Courtesy of CHRYSLER

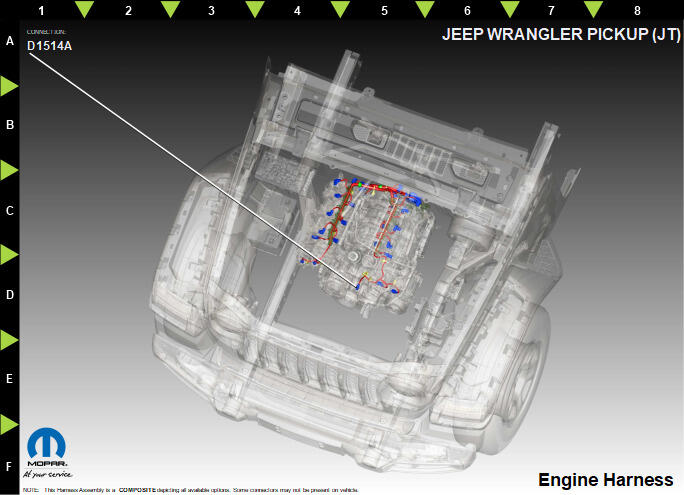

Fig 4: Sensor-Engine Coolant Temperature Component Location View (3.6L GAS)

Courtesy of CHRYSLER

Pin	Circuit	Wire Color	Gauge/Size	Function	Option
1	K2	VT/OG	0.35	ECT SIGNAL	N/A
2	K900	DB/DG	0.35	SENSOR GROUND	N/A
