Sensor-Engine Coolant Temperature (3.0L Diesel) Connector End View (D1514A)

Harness-Family: Engine_Diesel1

Color: BLACK

Gender: FEMALE

Part Number: 1/14117/87

Part Description: Not Available

Connector No: D1514A

Option: 3.0L DIESEL

Repair Kit Part Number: Not Available

Cavity Count: null

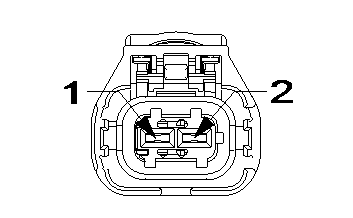

Fig 1: Sensor-Engine Coolant Temperature Connector End View (3.0L DIESEL)

Courtesy of CHRYSLER

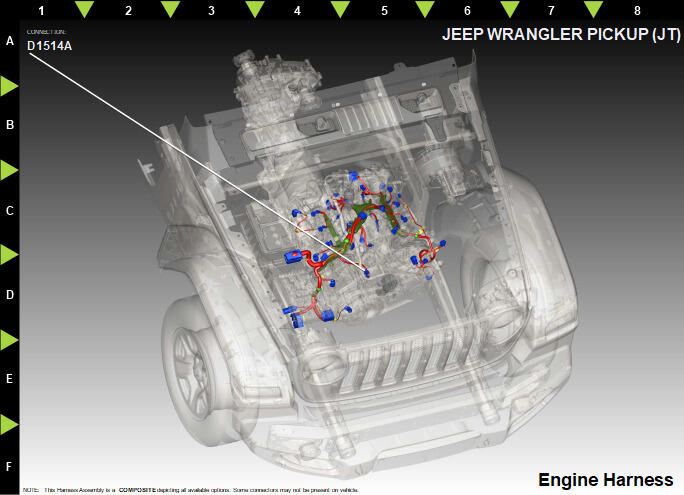

Fig 2: Sensor-Engine Coolant Temperature Component Location View (3.0L DIESEL)

Courtesy of CHRYSLER
