Sensor-EGR Temperature (Standard) Connector End View (D2529A)

Harness-Family: Engine_Diesel1

Color: DARK BLUE

Gender: FEMALE

Part Number: 54200260

Part Description: APEX CONNECTOR ASM W/ CLIP SLOT AND CPA

Connector No: D2529A

Option: Standard

Repair Kit Part Number: 68500862AA

Cavity Count: 2

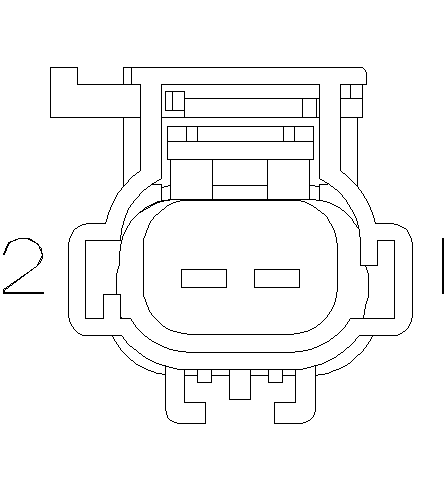

Fig 1: Sensor-Egr Temperature Connector End View (Standard)

Courtesy of CHRYSLER

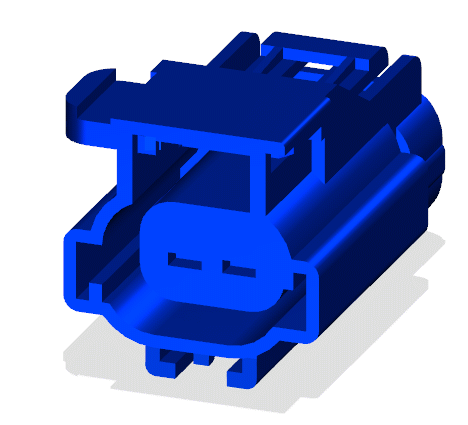

Fig 2: Sensor-Egr Temperature Isometric View (Standard)

Courtesy of CHRYSLER

Fig 3: Sensor-Egr Temperature Wire Insertion View (Standard)

Courtesy of CHRYSLER

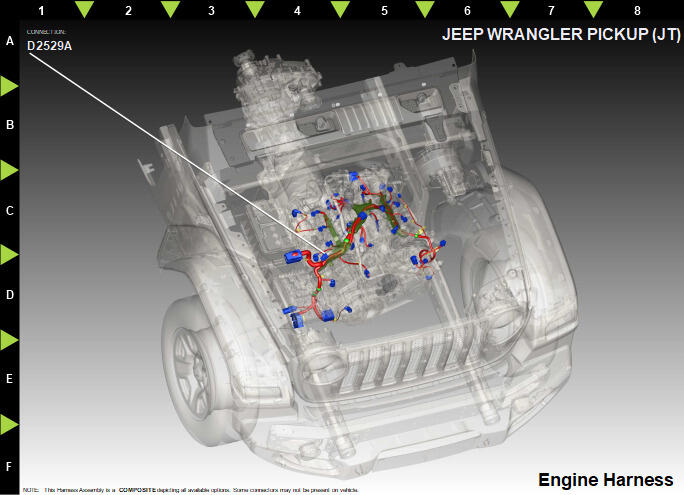

Fig 4: Sensor-Egr Temperature Component Location View (Standard)

Courtesy of CHRYSLER

Pin	Circuit	Wire Color	Gauge/Size	Function	Option
1	K915	BK/DB	0.50	SENSOR RETURN	N/A
2	K935	WH/VT	0.50	SENSOR SIGNAL	N/A
