Sensor-Differential Pressure (Standard) Connector End View (D1632A)

Harness-Family: Engine_Diesel1

Color: BLACK

Gender: FEMALE

Part Number: 211PCO32S114

Part Description: Not Available

Connector No: D1632A

Option: Standard

Repair Kit Part Number: Not Available

Cavity Count: 3

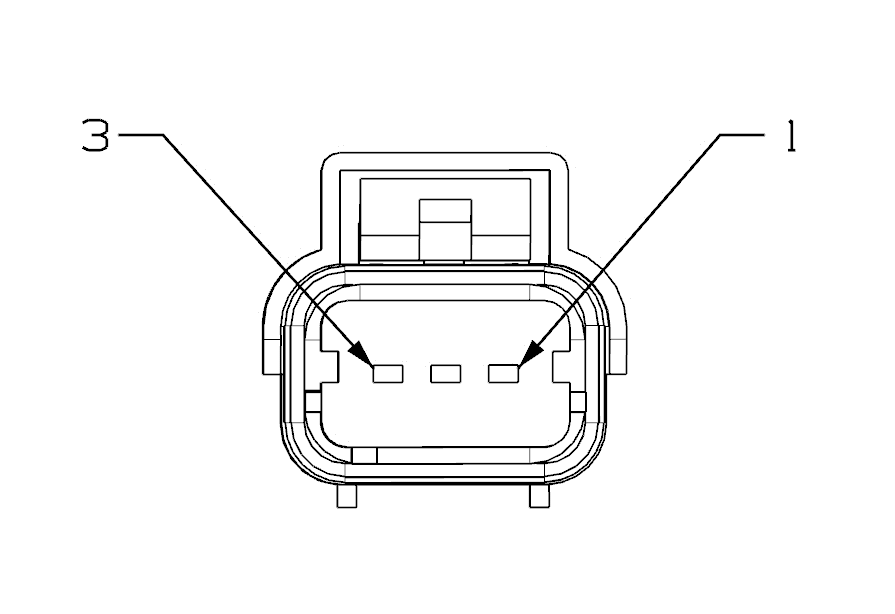

Fig 1: Sensor-Differential Pressure Connector End View (Standard)

Courtesy of CHRYSLER

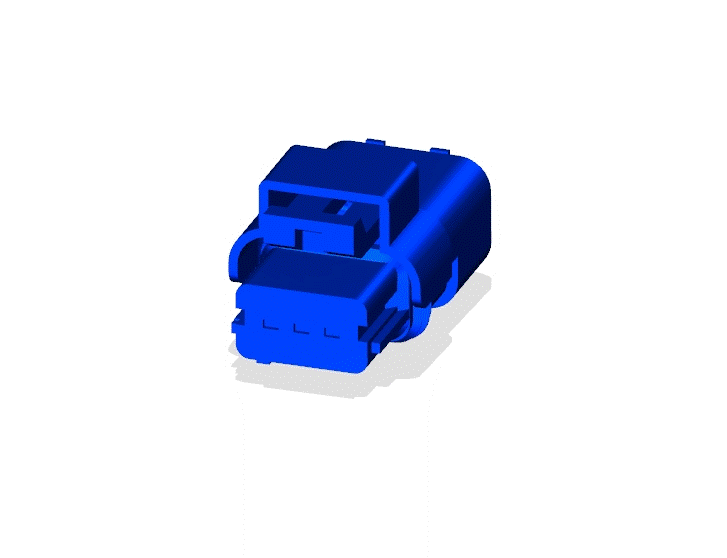

Fig 2: Sensor-Differential Pressure Isometric View (Standard)

Courtesy of CHRYSLER

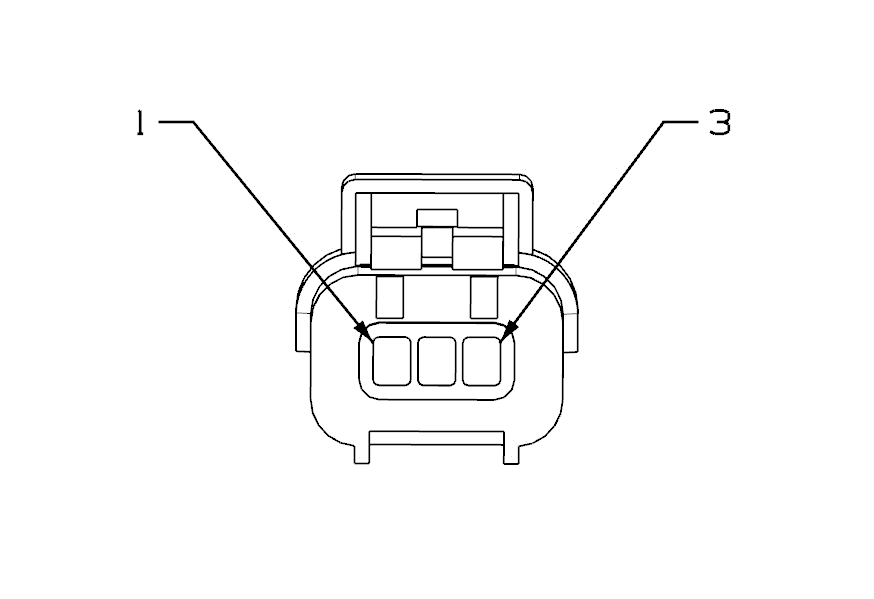

Fig 3: Sensor-Differential Pressure Wire Insertion View (Standard)

Courtesy of CHRYSLER

Fig 4: Sensor-Differential Pressure Component Location View (Standard)

Courtesy of CHRYSLER

Pin	Circuit	Wire Color	Gauge/Size	Function	Option
1	K489	YE/RD	0.50	SENSOR SIGNAL	N/A
2	K952	BK/RD	0.50	SENSOR RETURN	N/A
3	F860	RD/GN	0.50	5-VOLT SUPPLY	N/A
