Sensor-Crankshaft Position (3.6L Gas) Connector End View (D1511A)

Harness-Family: Powertrain

Color: BROWN

Gender: FEMALE

Part Number: 4-2098541-2

Part Description: Not Available

Connector No: D1511A

Option: 3.6L GAS

Repair Kit Part Number: 68225151AB

Cavity Count: 3

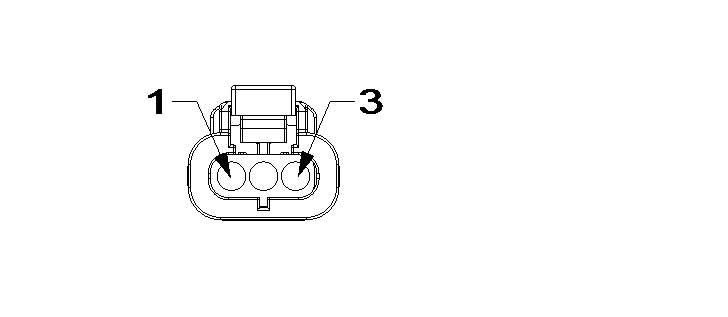

Fig 1: Sensor-Crankshaft Position Connector End View (3.6L GAS)

Courtesy of CHRYSLER

Fig 2: Sensor-Crankshaft Position Isometric View (3.6L GAS)

Courtesy of CHRYSLER

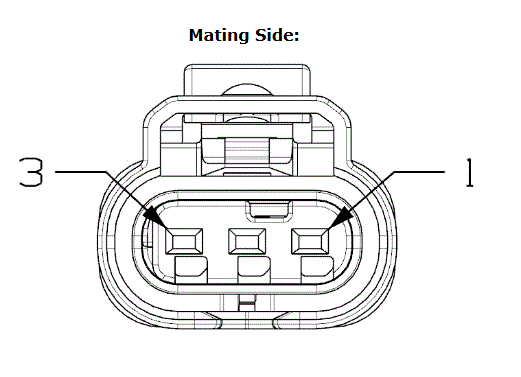

Fig 3: Sensor-Crankshaft Position Wire Insertion View (3.6L GAS)

Courtesy of CHRYSLER

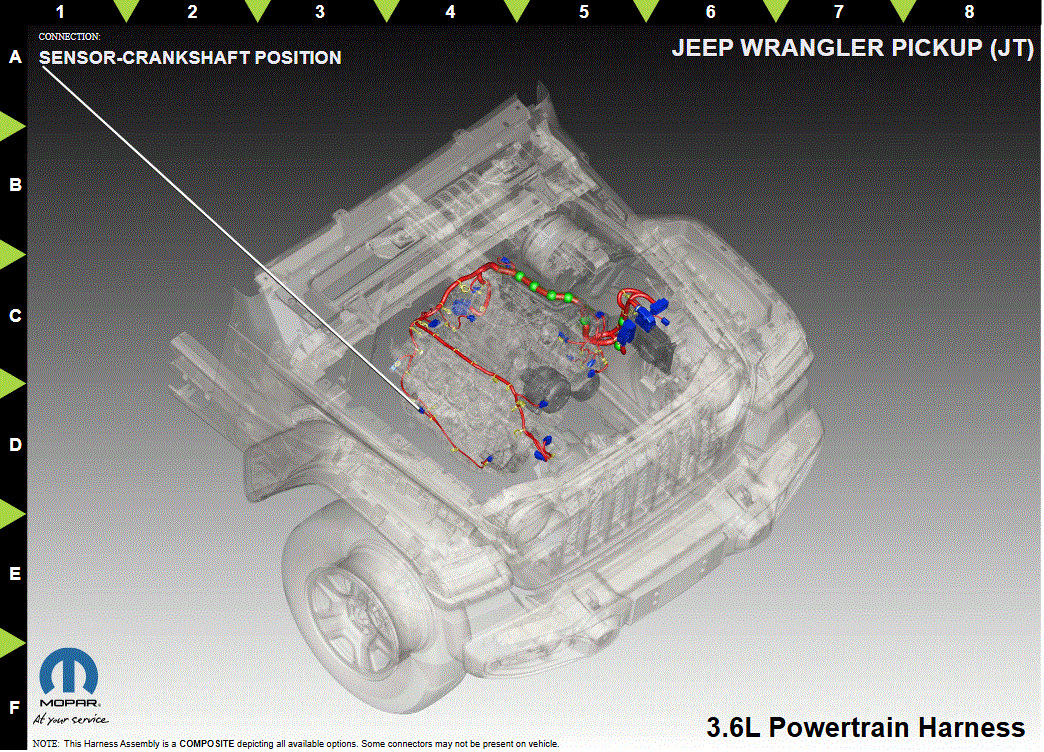

Fig 4: Sensor-Crankshaft Position Component Location View (3.6L GAS)

Courtesy of CHRYSLER

Pin	Circuit	Wire Color	Gauge/Size	Function	Option
1	K925	DB/GY	0.50	CKP GROUND	N/A
2	K24	BN/BU	0.50	CKP SIGNAL	N/A
3	F855	PK/YE	0.50	5 VOLT SUPPLY	N/A
