Sensor-Crankcase Pressure (Standard) Connector End View (D2415A)

Harness-Family: Engine_Diesel1

Color: LIGHT GRAY

Gender: FEMALE

Part Number: 54200309

Part Description: INS ASSY

Connector No: D2415A

Option: Standard

Repair Kit Part Number: 05014008AA

Cavity Count: 3

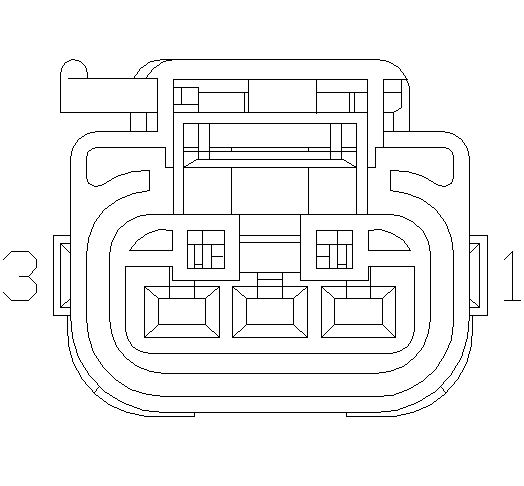

Fig 1: Sensor-Crankcase Pressure Connector End View (Standard)

Courtesy of CHRYSLER

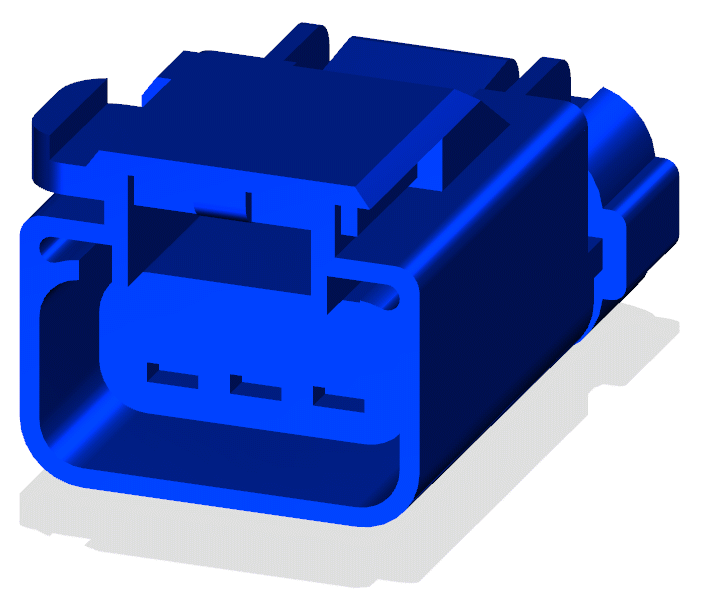

Fig 2: Sensor-Crankcase Pressure Isometric View (Standard)

Courtesy of CHRYSLER

Fig 3: Sensor-Crankcase Pressure Wire Insertion View (Standard)

Courtesy of CHRYSLER

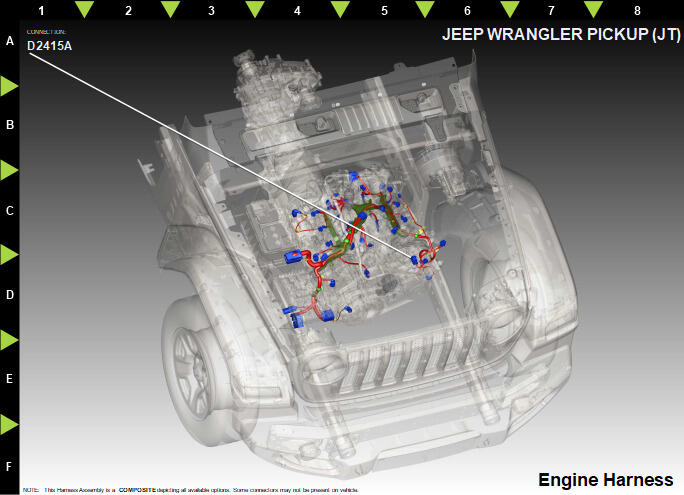

Fig 4: Sensor-Crankcase Pressure Component Location View (Standard)

Courtesy of CHRYSLER

Pin	Circuit	Wire Color	Gauge/Size	Function	Option
1	K860	RD/VT	0.75	5 VOLT SUPPLY	N/A
2	K936	BK/RD	0.75	EOP SENSOR GROUND	N/A
3	K302	YE/RD	0.75	CRANKCASE PRESSURE SENSOR SIGNAL	N/A
