Sensor-Clutch Position (Standard) Connector End View (D3222A)

Harness-Family: Body

Color: BLACK

Gender: FEMALE

Part Number: 8002314801B

Part Description: Not Available

Connector No: D3222A

Option: Standard

Repair Kit Part Number: 68490846AA

Cavity Count: 4

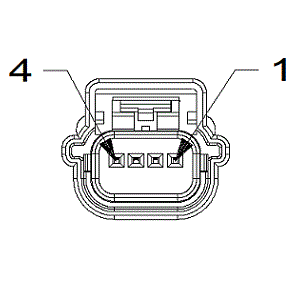

Fig 1: Sensor-Clutch Position Connector End View (Standard)

Courtesy of CHRYSLER

Fig 2: Sensor-Clutch Position Isometric View (Standard)

Courtesy of CHRYSLER

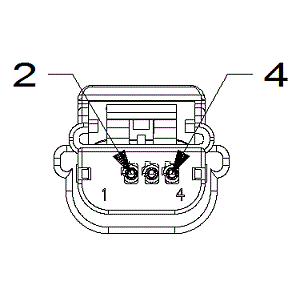

Fig 3: Sensor-Clutch Position Wire Insertion View (Standard)

Courtesy of CHRYSLER

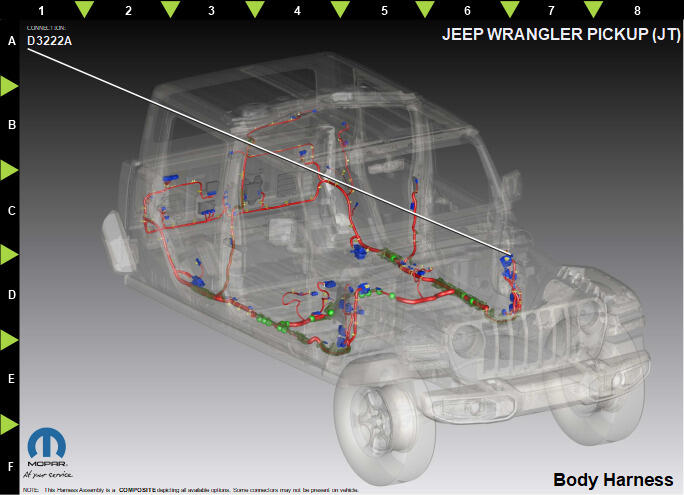

Fig 4: Sensor-Clutch Position Component Location View (Standard)

Courtesy of CHRYSLER

Pin	Circuit	Wire Color	Gauge/Size	Function	Option
1	N0	NA	0	NO CONNECT	N/A
2	K917	BN/BG	0.50	SENSOR GROUND	N/A
3	K859	BN/DB	0.75	5 VOLT SUPPLY	N/A
4	T119	YE	0.75	CLUTCH POSITION SIGNAL	N/A
