Sensor-Camshaft Position 2 (Standard) Connector End View (D1648A)

Harness-Family: Engine

Color: BLACK

Gender: FEMALE

Part Number: 805-122-581

Part Description: Not Available

Connector No: D1648A

Option: Standard

Repair Kit Part Number: 68396618AA

Cavity Count: 4

Fig 1: Sensor-Camshaft Position 2 Connector End View (Standard)

Courtesy of CHRYSLER

Fig 2: Sensor-Camshaft Position 2 Isometric View (Standard)

Courtesy of CHRYSLER

Fig 3: Sensor-Camshaft Position 2 Wire Insertion View (Standard)

Courtesy of CHRYSLER

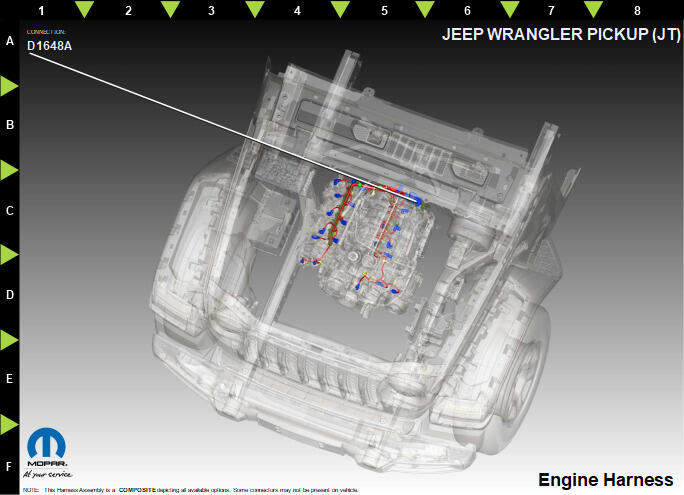

Fig 4: Sensor-Camshaft Position 2 Component Location View (Standard)

Courtesy of CHRYSLER

Pin	Circuit	Wire Color	Gauge/Size	Function	Option
1	K444	DB/TN	0.35	CMP SENSOR SIGNAL 2/1	N/A
2	K856	BN/YE	0.35	5 VOLT SUPPLY	N/A
3	K900	DB/DG	0.35	SENSOR GROUND	N/A
4	K445	DB	0.35	CMP SENSOR SIGNAL 2/2	N/A
