Sensor-Camshaft Position (3.6L Gas) Connector End View (D1510A)

Harness-Family: Engine

Color: BLACK

Gender: FEMALE

Part Number: 805-122-581

Part Description: Not Available

Connector No: D1510A

Option: 3.6L GAS

Repair Kit Part Number: 68396618AA

Cavity Count: 4

Fig 1: Sensor-Camshaft Position Connector End View (3.6L GAS)

Courtesy of CHRYSLER

Fig 2: Sensor-Camshaft Position Isometric View (3.6L GAS)

Courtesy of CHRYSLER

Fig 3: Sensor-Camshaft Position Wire Insertion View (3.6L GAS)

Courtesy of CHRYSLER

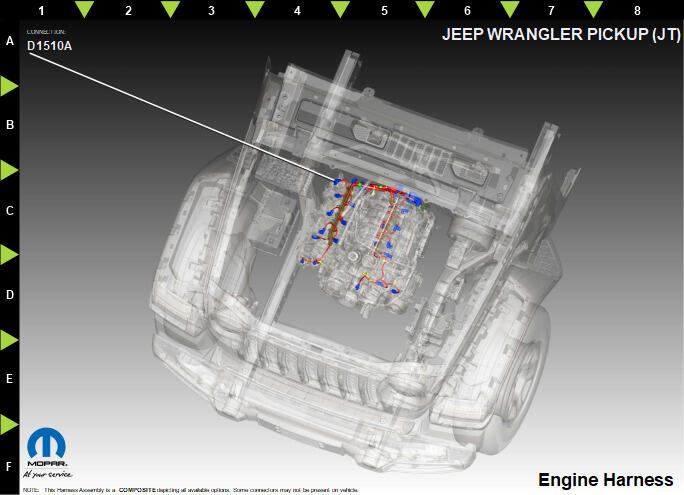

Fig 4: Sensor-Camshaft Position Component Location View (3.6L GAS)

Courtesy of CHRYSLER

Pin	Circuit	Wire Color	Gauge/Size	Function	Option
1	K441	DB/BN	0.35	CMP SENSOR SIGNAL 1/2	N/A
2	K856	BN/YE	0.35	5 VOLT SUPPLY	N/A
3	K900	DB/DG	0.35	SENSOR GROUND	N/A
4	K44	DB/GY	0.35	CMP SENSOR SIGNAL 1/1	N/A
