Sensor-Brake Fluid Level (Standard) Connector End View (D2211B)

Harness-Family: Dash

Color: BLACK

Gender: FEMALE

Part Number: 4-1924067-1

Part Description: Not Available

Connector No: D2211B

Option: Standard

Repair Kit Part Number: 68137867AB

Cavity Count: 2

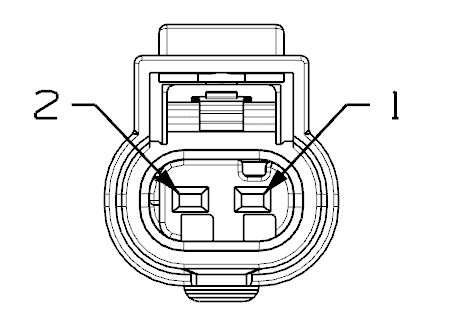

Fig 1: Sensor-Brake Fluid Level Connector End View (Standard)

Courtesy of CHRYSLER

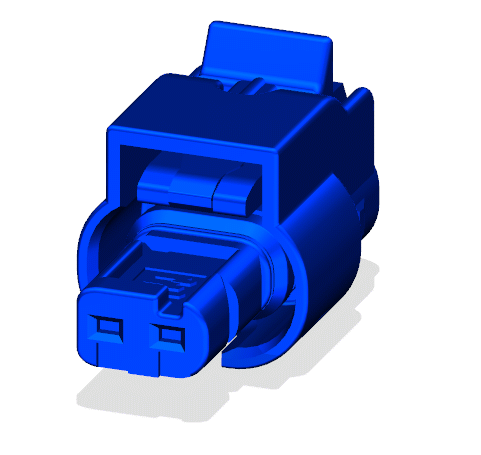

Fig 2: Sensor-Brake Fluid Level Isometric View (Standard)

Courtesy of CHRYSLER

Fig 3: Sensor-Brake Fluid Level Wire Insertion View (Standard)

Courtesy of CHRYSLER

Fig 4: Sensor-Brake Fluid Level Component Location View (Standard)

Courtesy of CHRYSLER

Pin	Circuit	Wire Color	Gauge/Size	Function	Option
1	B20	DG/OG	0.50	BRAKE FLUID LEVEL SIGNAL	N/A
2	Z420	BK/OG	0.50	GROUND	N/A
