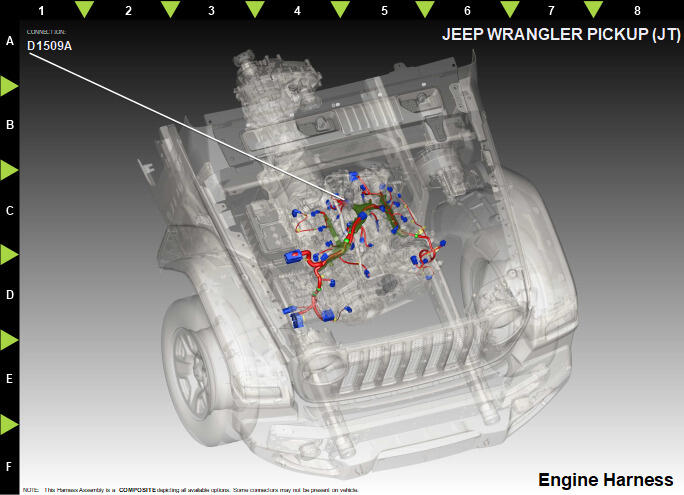

Sensor-Boost Pressure (Standard) Connector End View (D1509A)
Harness-Family: Engine_Diesel1
Color: BLACK
Gender: FEMALE
Part Number: 1/14115/87
Part Description: Not Available
Connector No: D1509A
Option: Standard
Repair Kit Part Number: Not Available
Cavity Count: null
| Pin | Circuit | Wire Color | Gauge/Size | Function | Option |
|---|---|---|---|---|---|
| 1 | K690 | BK/RD | 0.50 | COMBO PRESS AND TEMP SNSR RTN | N/A |
| 3 | K668 | DB/WH | 0.50 | 5 VOLT SUPPLY | N/A |
| 4 | K37 | RD/BK | 0.50 | BOOST PRESSURE SIGNAL | N/A |
