Sensor-Auto Headlamp (Standard) Connector End View (D1506A)

Harness-Family: Chassis_LT

Color: GRAY

Gender: FEMALE

Part Number: 160073-3106

Part Description: Not Available

Connector No: D1506A

Option: Standard

Repair Kit Part Number: 68490841AA

Cavity Count: 3

Fig 1: Sensor-Auto Headlamp Connector End View (Standard)

Courtesy of CHRYSLER

Fig 2: Sensor-Auto Headlamp Isometric View (Standard)

Courtesy of CHRYSLER

Fig 3: Sensor-Auto Headlamp Wire Insertion View (Standard)

Courtesy of CHRYSLER

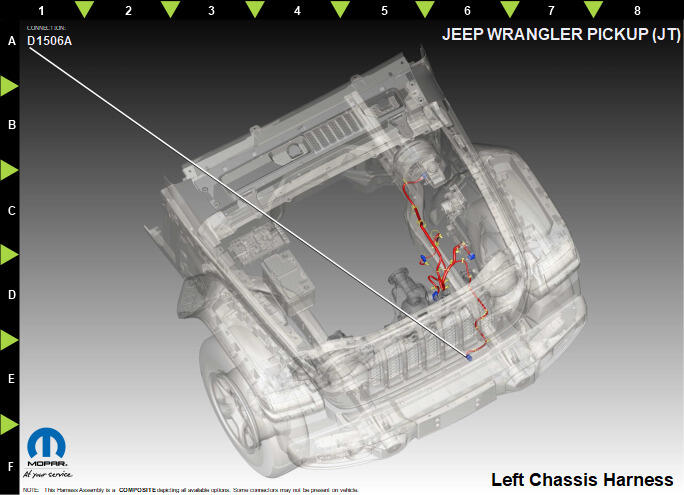

Fig 4: Sensor-Auto Headlamp Component Location View (Standard)

Courtesy of CHRYSLER

Pin	Circuit	Wire Color	Gauge/Size	Function	Option
1	F861	WH/PK	0.35	HEADLAMP LEVELING SNSR 5V SUPPLY	N/A
2	L966	WH/BK	0.35	HEADLAMP LEVELING SENSOR FRONT RETURN	N/A
3	L960	WH/DG	0.35	HEADLAMP LEVELING SENSOR FRONT SIGNAL	N/A
