Sensor-Ambient Air Temperature (Standard) Connector End View (D1504A)

Harness-Family: Front_End_Module

Color: BLACK

Gender: FEMALE

Part Number: 184000-1

Part Description: SEALED SENSOR CONNECTOR

Connector No: D1504A

Option: Standard

Repair Kit Part Number: 05014002AA

Cavity Count: 2

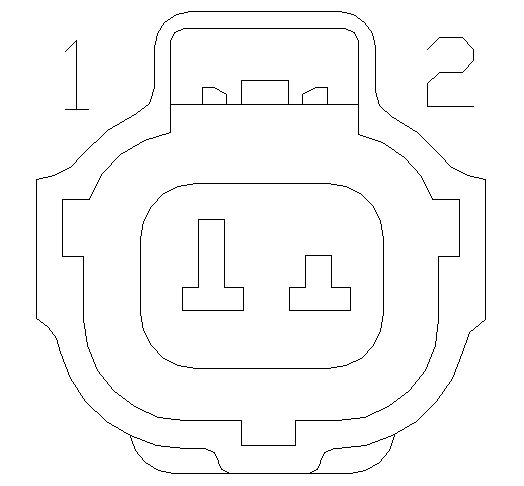

Fig 1: Sensor-Ambient Air Temperature Connector End View (Standard)

Courtesy of CHRYSLER

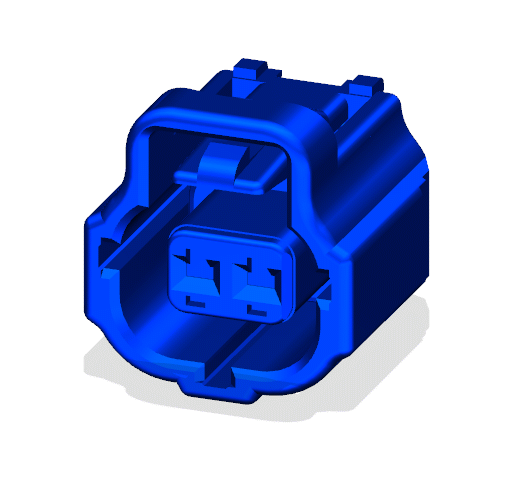

Fig 2: Sensor-Ambient Air Temperature Isometric View (Standard)

Courtesy of CHRYSLER

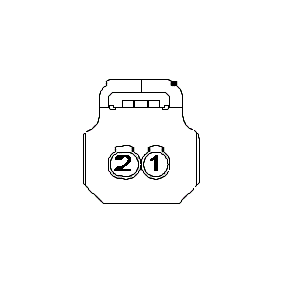

Fig 3: Sensor-Ambient Air Temperature Wire Insertion View (Standard)

Courtesy of CHRYSLER

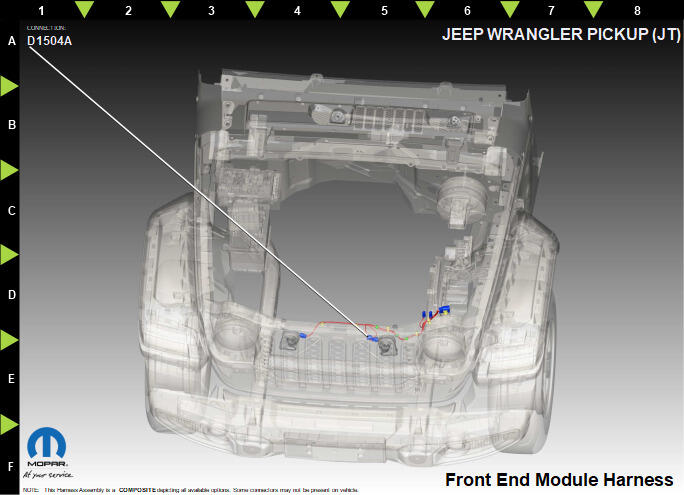

Fig 4: Sensor-Ambient Air Temperature Component Location View (Standard)

Courtesy of CHRYSLER

Pin	Circuit	Wire Color	Gauge/Size	Function	Option
1	G31	VT/GN	0.50	AAT SIGNAL	N/A
2	G931	VT/BN	0.35	SENSOR GROUND	N/A
