Sb101A (Standard) Connector End View (Sb101A)

Harness-Family: Dash

Color: BLACK

Gender: FEMALE

Part Number: 13678638_33177196_13678636

Part Description: Not Available

Connector No: SB101A

Option: Standard

Repair Kit Part Number: 68429684AA

Cavity Count: 12

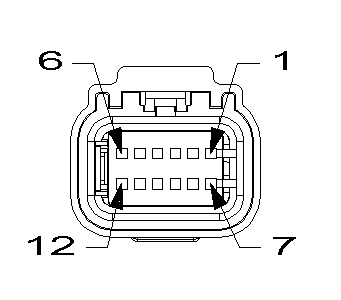

Fig 1: Sb101a Connector End View (Standard)

GCWD1255745

Courtesy of CHRYSLER

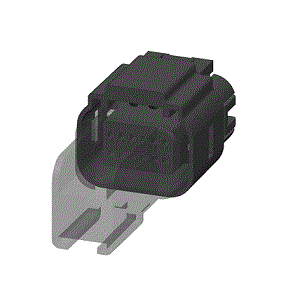

Fig 2: Sb101a Isometric View (Standard)

GCWD1318262

Courtesy of CHRYSLER

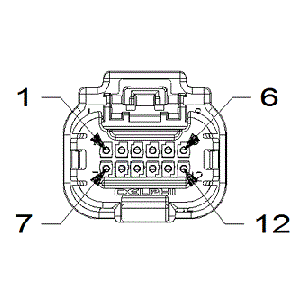

Fig 3: Sb101a Wire Insertion View (Standard)

GCWD1319082

Courtesy of CHRYSLER

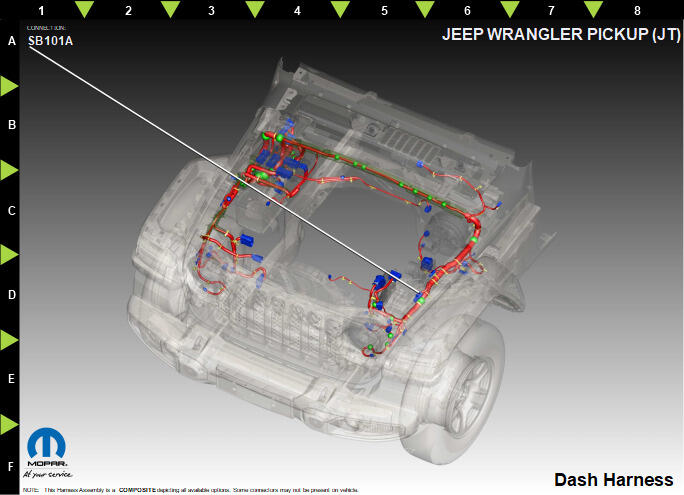

Fig 4: Sb101a Component Location View (Standard)

GCWD1318721

Courtesy of CHRYSLER

Pin	Circuit	Wire Color	Gauge/Size	Function	Option
1	K859	BN/DB	0.50	5 VOLT SUPPLY	N/A
2	N0	NA	0	NO CONNECT	AUTO TRANS
2	K859	BN/DB	0.35	5 VOLT SUPPLY	MANUAL TRANS
3	K859	BN/DB	0.35	5 VOLT SUPPLY	N/A
4	K859	BN/DB	0.35	5 VOLT SUPPLY	N/A
5	N0	NA	0	NO CONNECT	AUTO TRANS
5	K859	BN/DB	0.35	5 VOLT SUPPLY	MANUAL TRANS
6	N0	NA	0	NO CONNECT	AUTO TRANS
6	K859	BN/DB	0.35	5 VOLT SUPPLY	MANUAL TRANS
7	K917	BN/BG	0.35	SENSOR GROUND	N/A
7	K917	BN/BG	0.50	SENSOR GROUND	MANUAL TRANS
7	K917	BN/BG	0.35	SENSOR GROUND	AUTO TRANS
8	K917	BN/BG	0.50	SENSOR GROUND	AUTO TRANS
8	K917	BN/BG	0.35	SENSOR GROUND	MANUAL TRANS
9	K917	BN/BG	0.35	SENSOR GROUND	N/A
10	K917	BN/BG	0.35	SENSOR GROUND	N/A
11	K917	BN/BG	0.35	SENSOR GROUND	N/A
12	K917	BN/BG	0.35	SENSOR GROUND	N/A
