SC34 (Standard) Connector End View (SC34)

Harness-Family: HVAC

Color: NA

Gender: FEMALE

Part Number: AGV36375

Part Description: Not Available

Connector No: SC34

Option: Standard

Repair Kit Part Number: Not Serviced

Cavity Count: N/A

Fig 1: Sc34 Connector End View (Standard)
GCWD1006420Courtesy of CHRYSLER

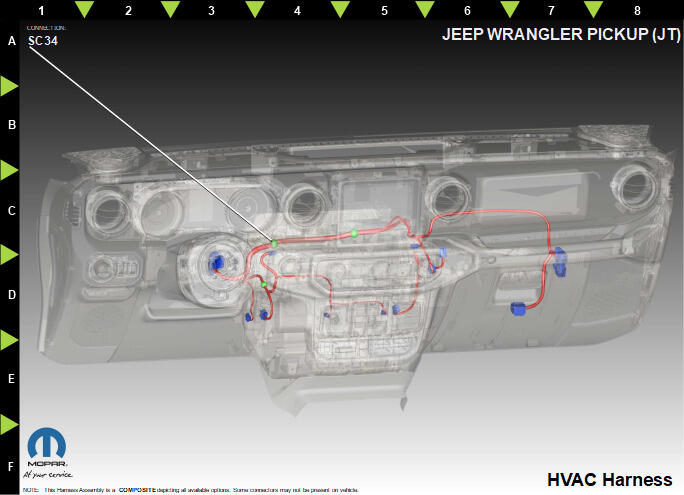

Fig 2: Sc34 Component Location View (Standard)
GCWD1318964Courtesy of CHRYSLER
Pin Circuit Wire Color Gauge/Size Function Option
1 C34 DB/BU 0.35 SIGNAL RETURN N/A
2 C34 DB/BU 0.35 SIGNAL RETURN N/A
3 C34 DB/BU 0.35 SIGNAL RETURN N/A
4 C34 DB/BU 0.35 SIGNAL RETURN N/A
5 C34 DB/BU 0.35 SIGNAL RETURN N/A
