S401 (Standard) Connector End View (S401)

Harness-Family: Seat_Cushion_Pass

Color: NA

Gender: FEMALE

Part Number: AGV36375

Part Description: Not Available

Connector No: S401

Option: Standard

Repair Kit Part Number: Not Serviced

Cavity Count: N/A

Fig 1: S401 Connector End View (Standard)
GCWD1006420Courtesy of CHRYSLER

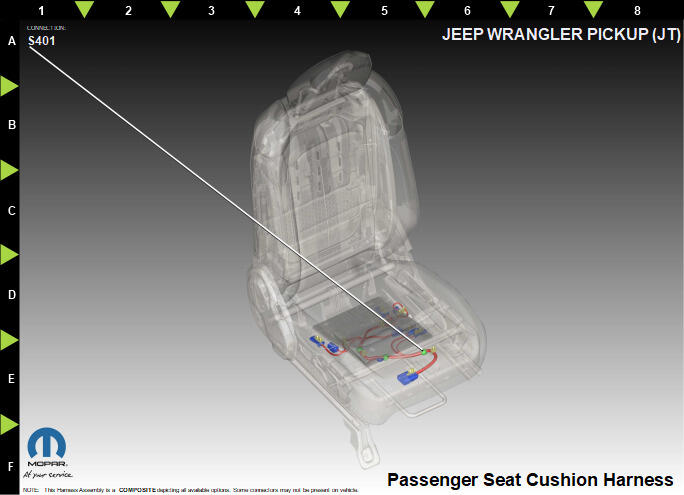

Fig 2: S401 Component Location View (Standard)
GCWD1318719Courtesy of CHRYSLER
Pin Circuit Wire Color Gauge/Size Function Option
1 R730 BU/BK 0.75 PASSENGER SEAT DETECTION RETURN N/A
