S3000 (Standard) Connector End View (S3000)

Harness-Family: Body

Color: NA

Gender: FEMALE

Part Number: AGV36375

Part Description: Not Available

Connector No: S3000

Option: Standard

Repair Kit Part Number: Not Serviced

Cavity Count: N/A

Fig 1: S3000 Connector End View (Standard)
GCWD1006420Courtesy of CHRYSLER

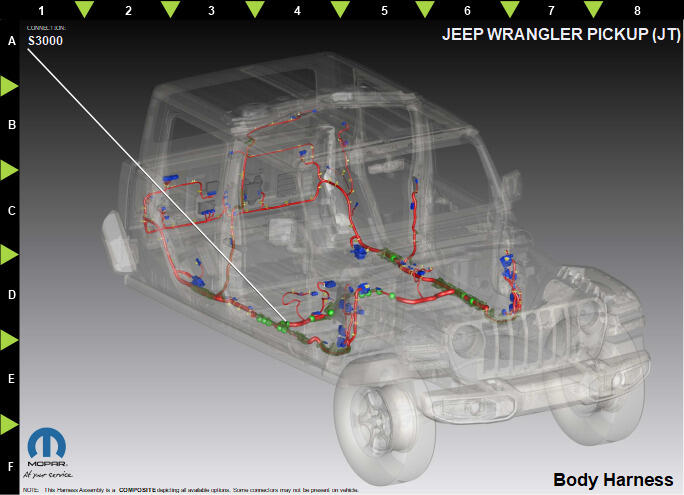

Fig 2: S3000 Component Location View (Standard)
GCWD1319104Courtesy of CHRYSLER
Pin Circuit Wire Color Gauge/Size Function Option
1 R730 BU/BK 0.75 PASSENGER SEAT DETECTION RETURN N/A
