S2A (Standard) Connector End View (S2)

Harness-Family: Steering_Wheel

Color: NA

Gender: FEMALE

Part Number: AGV36375

Part Description: Not Available

Connector No: S2

Option: Standard

Repair Kit Part Number: Not Serviced

Cavity Count: N/A

Fig 1: S2a Connector End View (Standard)
GCWD1006420Courtesy of CHRYSLER

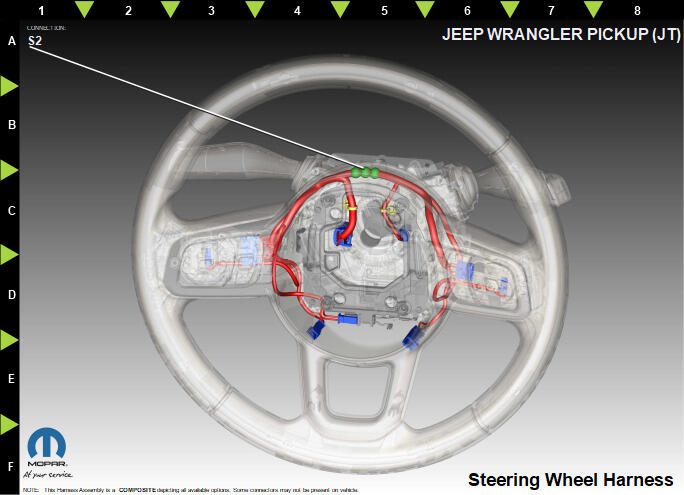

Fig 2: S2a Component Location View (Standard)
GCWD1318633Courtesy of CHRYSLER
Pin Circuit Wire Color Gauge/Size Function Option
1 X920 GY/OG 0.35 RADIO CONTROL MUX RETURN N/A
2 X920 GY/OG 0.35 RADIO CONTROL MUX RETURN N/A
3 X920 GY/OG 0.35 RADIO CONTROL MUX RETURN N/A
