S2700 (Standard) Connector End View (S2700)

Harness-Family: Door_Driver

Color: NA

Gender: FEMALE

Part Number: AGV36375

Part Description: Not Available

Connector No: S2700

Option: Standard

Repair Kit Part Number: Not Serviced

Cavity Count: N/A

Fig 1: S2700 Connector End View (Standard)
GCWD1006420Courtesy of CHRYSLER

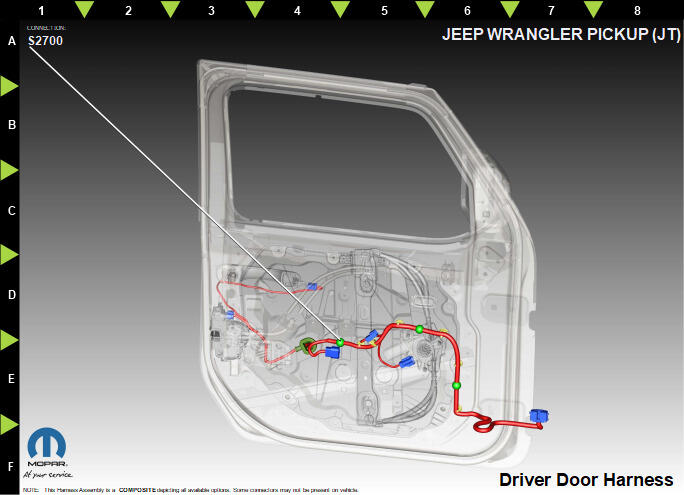

Fig 2: S2700 Component Location View (Standard)
GCWD1318739Courtesy of CHRYSLER
Pin Circuit Wire Color Gauge/Size Function Option
1 P371 BG/BN 0.50 DOOR LOCK SW RTN DRIV N/A
