S2603 (Standard) Connector End View (S2603)

Harness-Family: Dash

Color: NA

Gender: FEMALE

Part Number: AGV36375

Part Description: Not Available

Connector No: S2603

Option: Standard

Repair Kit Part Number: Not Serviced

Cavity Count: N/A

Fig 1: S2603 Connector End View (Standard)
GCWD1006420Courtesy of CHRYSLER

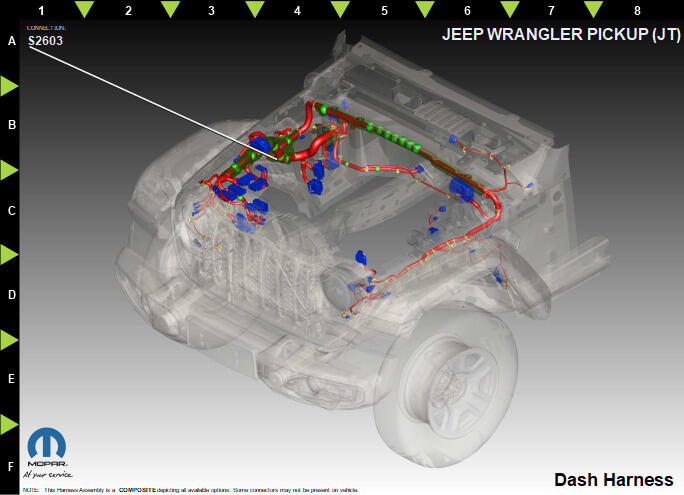

Fig 2: S2603 Component Location View (Standard)
GCWD1318726Courtesy of CHRYSLER
Pin Circuit Wire Color Gauge/Size Function Option
1 F925 PK/YE 0.50 FUSED IGNITION RUN CONTROL OUTPUT N/A
