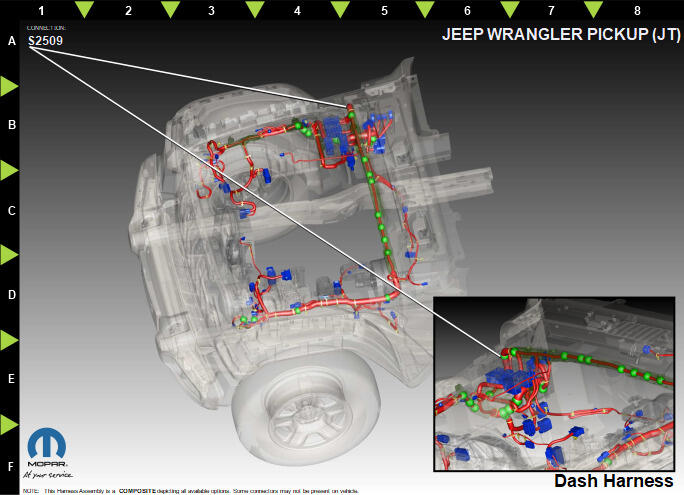

S2509 (Standard) Connector End View (S2509)
Harness-Family: Dash
Color: NA
Gender: FEMALE
Part Number: AGV36375
Part Description: Not Available
Connector No: S2509
Option: Standard
Repair Kit Part Number: Not Serviced
Cavity Count: N/A
Courtesy of CHRYSLER
Courtesy of CHRYSLER
| Pin |
Circuit |
Wire Color |
Gauge/Size |
Function |
Option |
| 1 |
F916 |
PK/BU |
0.50 |
FUSED IGNITION RUN/START |
N/A |
