S22429 (Standard) Connector End View (S22429)

Harness-Family: REAR BUMPER

Color: NA

Gender: FEMALE

Part Number: AGV36375

Part Description: Not Available

Connector No: S22429

Option: Standard

Repair Kit Part Number: Not Serviced

Cavity Count: N/A

Fig 1: S22429 Connector End View (Standard)
GCWD1006420Courtesy of CHRYSLER

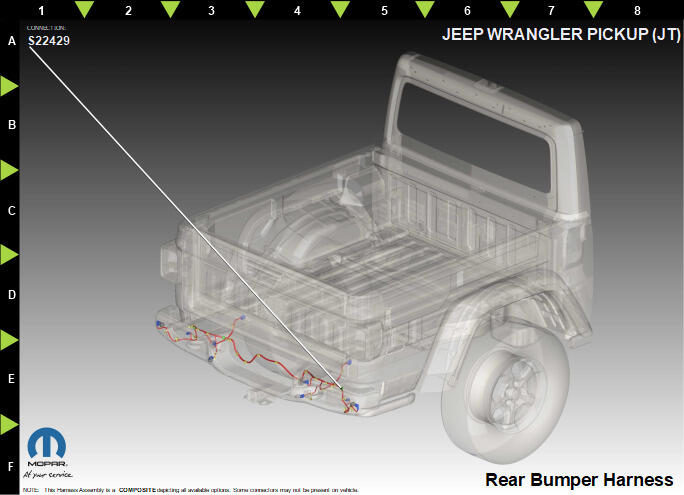

Fig 2: S22429 Component Location View (Standard)
GCWD1318806Courtesy of CHRYSLER
Pin Circuit Wire Color Gauge/Size Function Option
1 X700 GY/OG 0.35 REAR PARK ASSIST SENSOR SUPPLY N/A
