S22426 (Standard) Connector End View (S22426)

Harness-Family: JUMPER_UREA_TANK

Color: NA

Gender: FEMALE

Part Number: AGV36375

Part Description: Not Available

Connector No: S22426

Option: Standard

Repair Kit Part Number: Not Serviced

Cavity Count: N/A

Fig 1: S22426 Connector End View (Standard)
GCWD1006420Courtesy of CHRYSLER

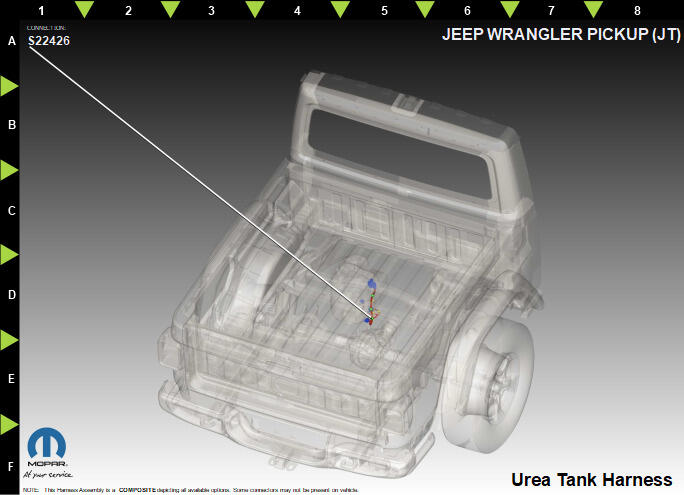

Fig 2: S22426 Component Location View (Standard)
GCWD1318819Courtesy of CHRYSLER
Pin Circuit Wire Color Gauge/Size Function Option
1 F203 PK/BU 0.50 FUSED SCR RELAY 1 OUTPUT N/A
