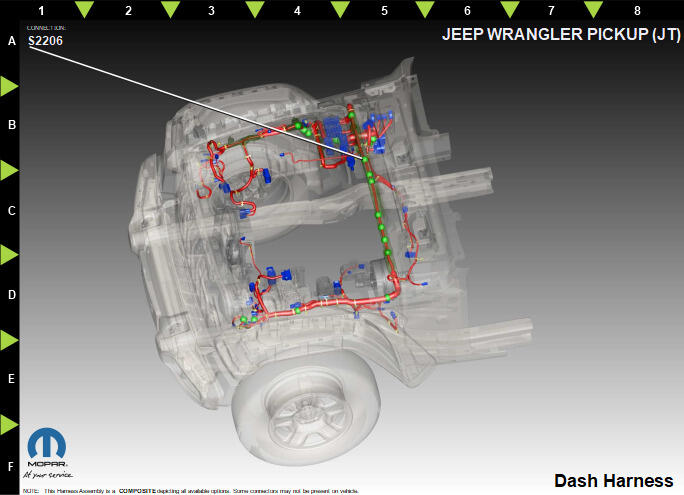

S2206 (Standard) Connector End View (S2206)
Harness-Family: Dash
Color: NA
Gender: FEMALE
Part Number: AGV36375
Part Description: Not Available
Connector No: S2206
Option: Standard
Repair Kit Part Number: Not Serviced
Cavity Count: N/A
Courtesy of CHRYSLER
Courtesy of CHRYSLER
| Pin |
Circuit |
Wire Color |
Gauge/Size |
Function |
Option |
| 1 |
F614 |
DB/PK |
0.75 |
ACCESSORY RELAY 4 OUTPUT |
N/A |
