S2204 (Standard) Connector End View (S2204)

Harness-Family: Dash

Color: NA

Gender: FEMALE

Part Number: AGV36375

Part Description: Not Available

Connector No: S2204

Option: Standard

Repair Kit Part Number: Not Serviced

Cavity Count: N/A

Fig 1: S2204 Connector End View (Standard)
GCWD1006420Courtesy of CHRYSLER

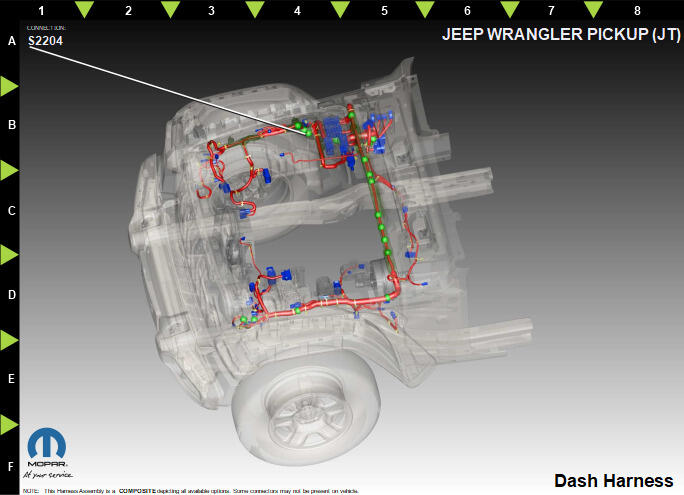

Fig 2: S2204 Component Location View (Standard)
GCWD1318685Courtesy of CHRYSLER
Pin Circuit Wire Color Gauge/Size Function Option
1 F612 GN/PK 3.0 ACCESSORY RELAY 2 OUTPUT N/A
