S2203 (Standard) Connector End View (S2203)

Harness-Family: Dash

Color: NA

Gender: FEMALE

Part Number: AGV36375

Part Description: Not Available

Connector No: S2203

Option: Standard

Repair Kit Part Number: Not Serviced

Cavity Count: N/A

Fig 1: S2203 Connector End View (Standard)
GCWD1006420Courtesy of CHRYSLER

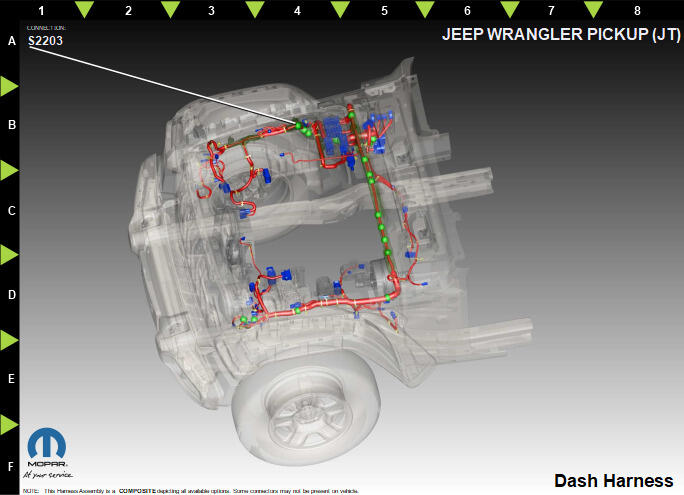

Fig 2: S2203 Component Location View (Standard)
GCWD1318686Courtesy of CHRYSLER
Pin Circuit Wire Color Gauge/Size Function Option
1 F611 BG/PK 3.0 ACCESSORY RELAY 1 OUTPUT N/A
