S2029 (Standard) Connector End View (S2029)

Harness-Family: Door_Pass

Color: NA

Gender: FEMALE

Part Number: AGV36375

Part Description: Not Available

Connector No: S2029

Option: Standard

Repair Kit Part Number: Not Serviced

Cavity Count: N/A

Fig 1: S2029 Connector End View (Standard)

Courtesy of CHRYSLER

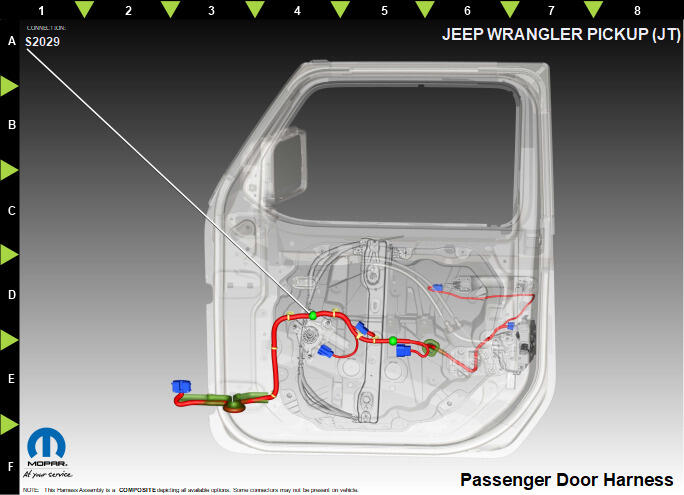

Fig 2: S2029 Component Location View (Standard)

Courtesy of CHRYSLER
