S1A (Standard) Connector End View (S1)

Harness-Family: Steering_Wheel

Color: NA

Gender: FEMALE

Part Number: AGV36375

Part Description: Not Available

Connector No: S1

Option: Standard

Repair Kit Part Number: Not Serviced

Cavity Count: N/A

Fig 1: S1a Connector End View (Standard)
GCWD1006420Courtesy of CHRYSLER

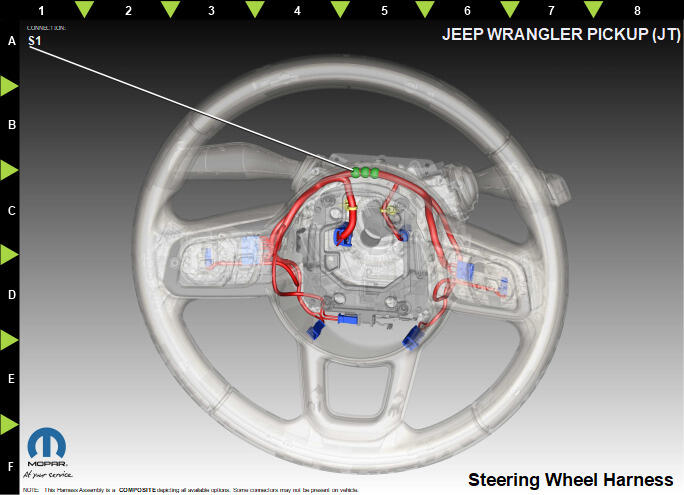

Fig 2: S1a Component Location View (Standard)
GCWD1318632Courtesy of CHRYSLER
Pin Circuit Wire Color Gauge/Size Function Option
1 Z92 BK 0.35 GROUND N/A
2 Z92 BK 0.35 GROUND N/A
3 Z92 BK 0.35 GROUND N/A
4 Z92 BK 0.35 GROUND N/A
