S17172 (Standard) Connector End View (S17172)

Harness-Family: Body

Color: NA

Gender: FEMALE

Part Number: AGV36375

Part Description: Not Available

Connector No: S17172

Option: Standard

Repair Kit Part Number: Not Serviced

Cavity Count: N/A

Fig 1: S17172 Connector End View (Standard)
GCWD1006420Courtesy of CHRYSLER

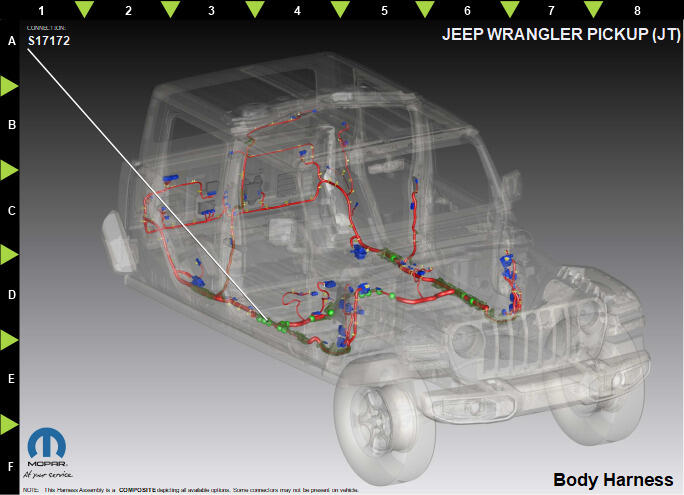

Fig 2: S17172 Component Location View (Standard)
GCWD1318258Courtesy of CHRYSLER
Pin Circuit Wire Color Gauge/Size Function Option
1 P292 VT/GN 0.75 DOOR UNLOCK CONTROL N/A
