S17070 (Standard) Connector End View (S17070)

Harness-Family: Powertrain

Color: NA

Gender: FEMALE

Part Number: AGV36375

Part Description: Not Available

Connector No: S17070

Option: Standard

Repair Kit Part Number: Not Serviced

Cavity Count: N/A

Fig 1: S17070 Connector End View (Standard)
GCWD1006420Courtesy of CHRYSLER

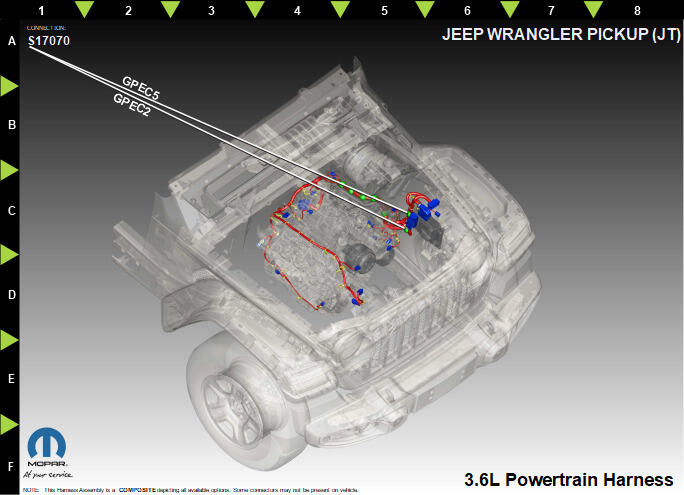

Fig 2: S17070 Component Location View (Standard)
GCWD1318511Courtesy of CHRYSLER
Pin Circuit Wire Color Gauge/Size Function Option
1 K902 BN/DG 0.75 O2 RETURN (UPSTREAM) N/A
