S17030 (Standard) Connector End View (S17030)

Harness-Family: Body

Color: NA

Gender: FEMALE

Part Number: AGV36375

Part Description: Not Available

Connector No: S17030

Option: Standard

Repair Kit Part Number: Not Serviced

Cavity Count: N/A

Fig 1: S17030 Connector End View (Standard)

Courtesy of CHRYSLER

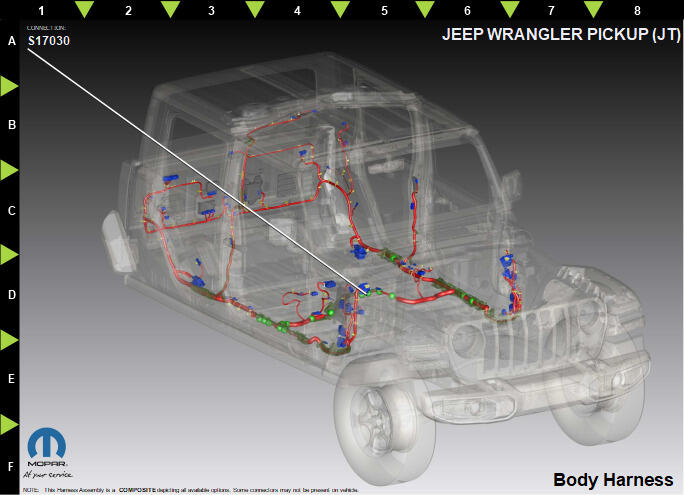

Fig 2: S17030 Component Location View (Standard)

Courtesy of CHRYSLER
