S1009 (Standard) Connector End View (S1009)

Harness-Family: Dash

Color: NA

Gender: FEMALE

Part Number: AGV36375

Part Description: Not Available

Connector No: S1009

Option: Standard

Repair Kit Part Number: Not Serviced

Cavity Count: N/A

Fig 1: S1009 Connector End View (Standard)

Courtesy of CHRYSLER

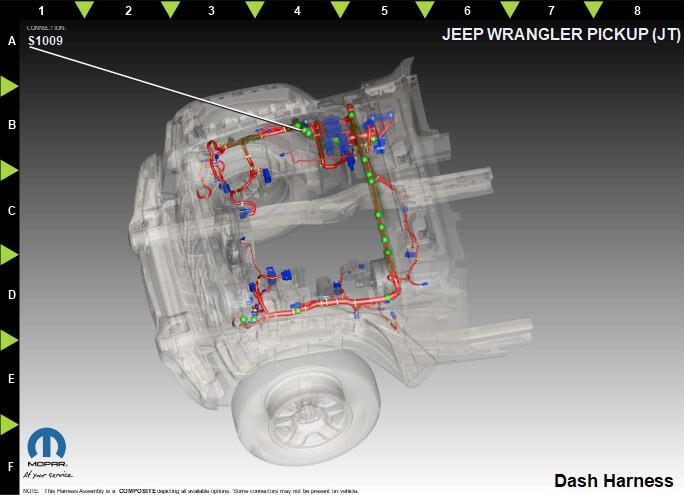

Fig 2: S1009 Component Location View (Standard)

Courtesy of CHRYSLER
