S010 (Standard) Connector End View (S010)

Harness-Family: Engine_Diesel1

Color: NA

Gender: FEMALE

Part Number: AGV36375

Part Description: Not Available

Connector No: S010

Option: Standard

Repair Kit Part Number: Not Serviced

Cavity Count: N/A

Fig 1: S010 Connector End View (Standard)
GCWD1006420Courtesy of CHRYSLER

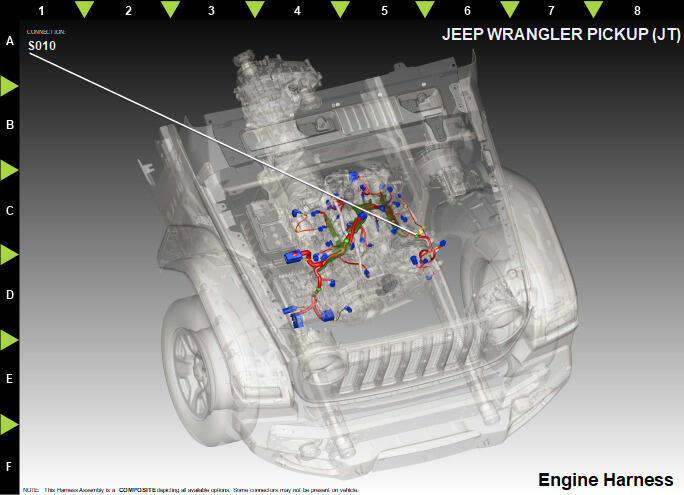

Fig 2: S010 Component Location View (Standard)
GCWD1318791Courtesy of CHRYSLER
Pin Circuit Wire Color Gauge/Size Function Option
1 D509 OG 0.50 LIN BUS N/A
2 D509 OG 0.50 LIN BUS N/A
3 D509 OG 0.50 LIN BUS N/A
4 D509 GY/BK 0.50 LIN BUS N/A
