S009 (Standard) Connector End View (S009)

Harness-Family: Engine_Diesel1

Color: NA

Gender: FEMALE

Part Number: AGV36375

Part Description: Not Available

Connector No: S009

Option: Standard

Repair Kit Part Number: Not Serviced

Cavity Count: N/A

Fig 1: S009 Connector End View (Standard)
GCWD1006420Courtesy of CHRYSLER

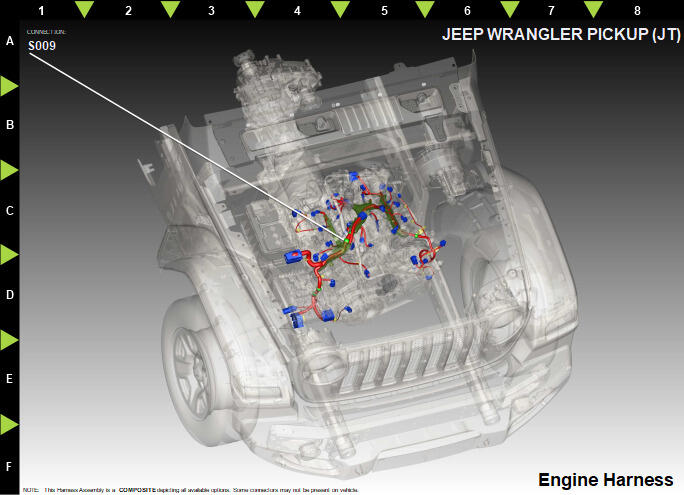

Fig 2: S009 Component Location View (Standard)
GCWD1318796Courtesy of CHRYSLER
Pin Circuit Wire Color Gauge/Size Function Option
1 K662 BK/WH 0.75 SENSOR RETURN N/A
2 K662 BK/DB 0.50 SENSOR RETURN N/A
3 K662 BK/DB 0.50 SENSOR RETURN N/A
