S008 (Standard) Connector End View (S008)

Harness-Family: Engine_Diesel1

Color: NA

Gender: FEMALE

Part Number: AGV36375

Part Description: Not Available

Connector No: S008

Option: Standard

Repair Kit Part Number: Not Serviced

Cavity Count: N/A

Fig 1: S008 Connector End View (Standard)

Courtesy of CHRYSLER

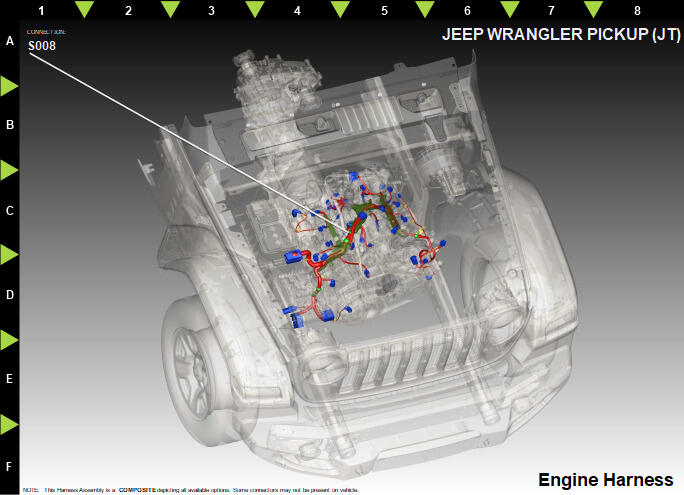

Fig 2: S008 Component Location View (Standard)

Courtesy of CHRYSLER

Pin	Circuit	Wire Color	Gauge/Size	Function	Option
1	N122	BK	0.50	SWIRL VALVE POSITION SENSOR 1 RETURN	N/A
2	N122	BK	0.50	SWIRL VALVE POSITION SENSOR 1 RETURN	N/A
3	N122	BK	0.50	SWIRL VALVE POSITION SENSOR 1 RETURN	N/A
