S004 (Standard) Connector End View (S004)

Harness-Family: Engine_Diesel1

Color: NA

Gender: FEMALE

Part Number: AGV36375

Part Description: Not Available

Connector No: S004

Option: Standard

Repair Kit Part Number: Not Serviced

Cavity Count: N/A

Fig 1: S004 Connector End View (Standard)

Courtesy of CHRYSLER

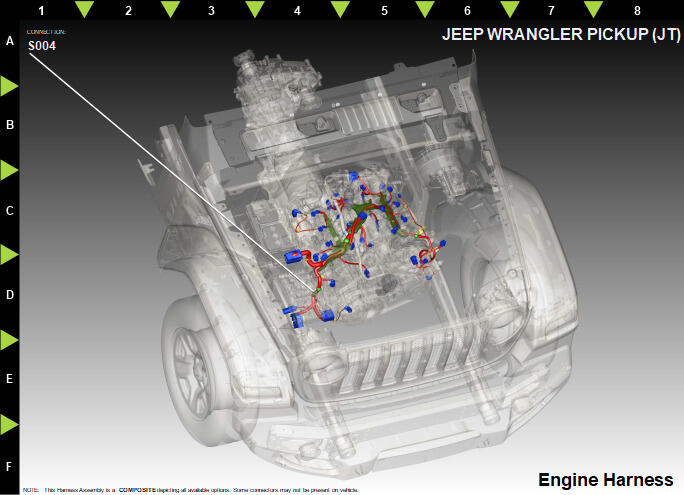

Fig 2: S004 Component Location View (Standard)

Courtesy of CHRYSLER

Pin	Circuit	Wire Color	Gauge/Size	Function	Option
1	F343	GY/RD	0.75	FUSED ASD RELAY OUTPUT	N/A
2	F343	GY/RD	0.75	FUSED ASD RELAY OUTPUT	N/A
3	F343	RD	2.5	FUSED ASD RELAY OUTPUT	N/A
4	F343	GY/RD	0.75	FUSED ASD RELAY OUTPUT	N/A
5	F343	GY/RD	0.50	FUSED ASD RELAY OUTPUT	N/A
6	F343	GY/RD	0.75	FUSED ASD RELAY OUTPUT	N/A
7	F343	GY/RD	0.75	FUSED ASD RELAY OUTPUT	N/A
