Relay-SCR 2 (On PCB) (Standard) Connector End View (D8312)

Harness-Family: PDC_Underhood

Color: NA

Gender: FEMALE

Part Number: NON-SERVICEABLE-PCB

Part Description: Not Available

Connector No: D8312

Option: Standard

Repair Kit Part Number: Not Serviced

Cavity Count: N/A

Fig 1: Relay-Scr 2 (on Pcb) Connector End View (Standard)

Courtesy of CHRYSLER

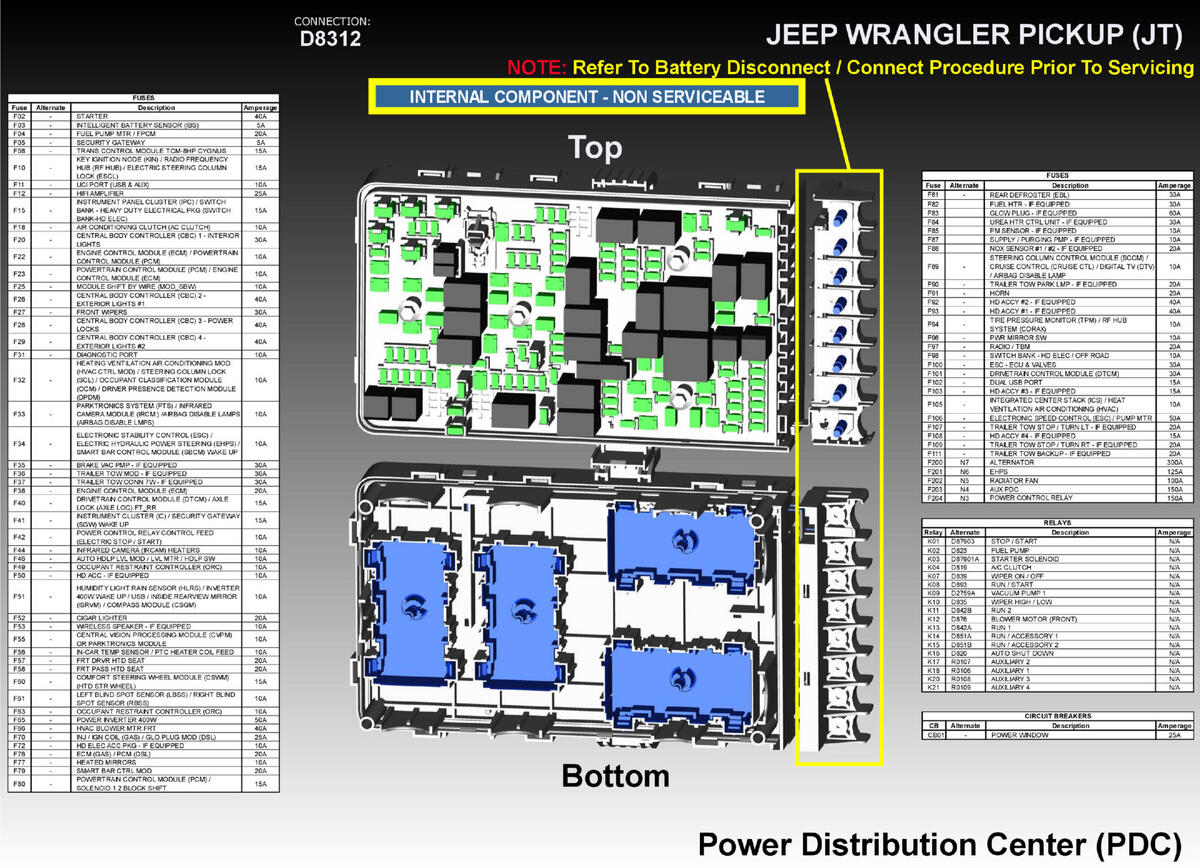

Fig 2: Relay-Scr 2 (on Pcb) Component Location View (Standard)

Courtesy of CHRYSLER

Pin	Circuit	Wire Color	Gauge/Size	Function	Option
1	A0	INTERNAL	NA	FUSED B(+)	N/A
2	A0	INTERNAL	NA	FUSED B(+)	N/A
3	K542	INTERNAL	NA	ASD RELAY CONTROL	N/A
4	K334	INTERNAL	NA	SCR RELAY 2 OUTPUT	N/A
5	K334	INTERNAL	NA	SCR RELAY 2 OUTPUT	N/A
6	K402	INTERNAL	NA	SCR RELAY 2 CONTROL	N/A
