Relay-Run/Start (Standard) Connector End View (D893)

Harness-Family: PDC_Underhood

Color: NA

Gender: MALE

Part Number: RELAY_MICRO

Part Description: Not Available

Connector No: D893

Option: Standard

Repair Kit Part Number: See StarParts

Cavity Count: 5

Fig 1: Relay-Run/start Connector End View (Standard)

Courtesy of CHRYSLER

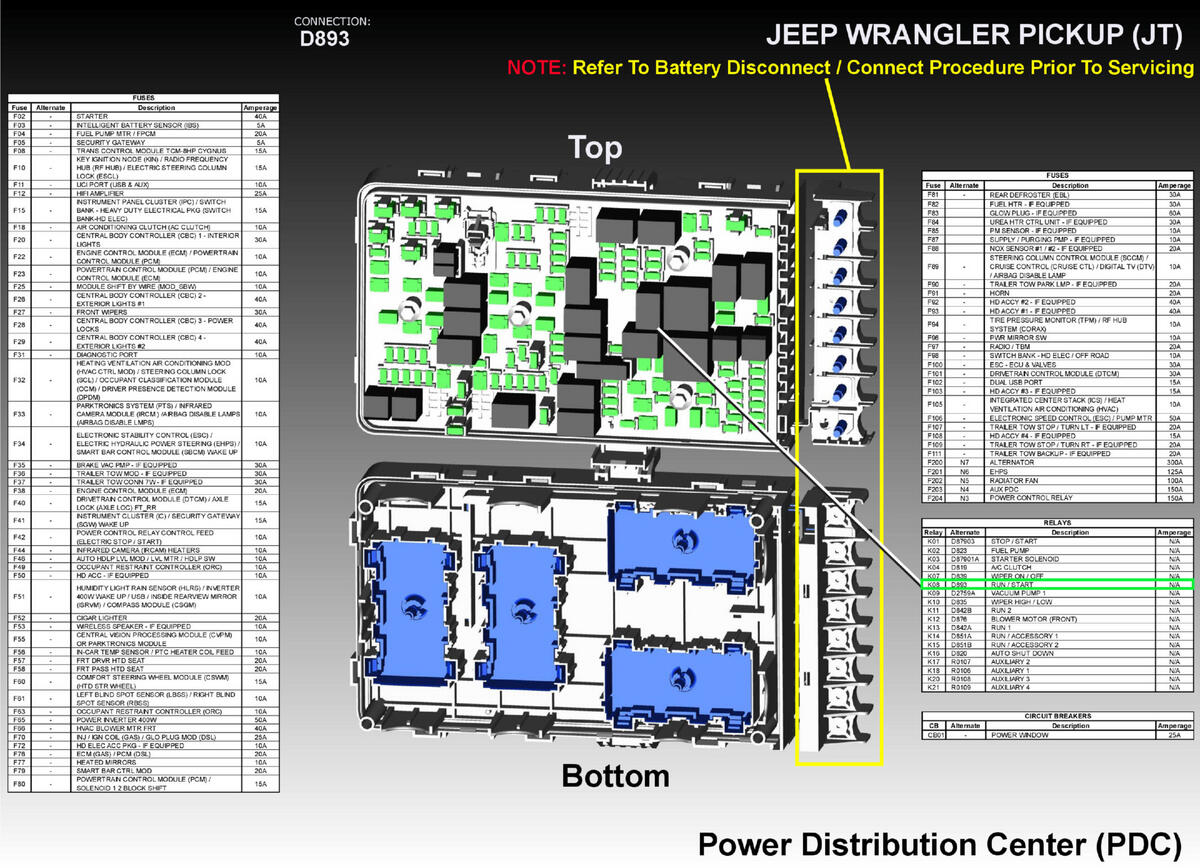

Fig 2: Relay-Run/start Component Location View (Standard)

Courtesy of CHRYSLER

Pin	Circuit	Wire Color	Gauge/Size	Function	Option
30	A0	INTERNAL	NA	FUSED B(+)	N/A
85	Z906	INTERNAL	NA	GROUND	N/A
86	K617	INTERNAL	NA	RUN/START RELAY CONTROL	N/A
87	F900	INTERNAL	NA	FUSED IGNITION	N/A
