Relay-Run/Accessory 1 (Standard) Connector End View (D851A)

Harness-Family: PDC_Underhood

Color: NA

Gender: MALE

Part Number: RELAY_MICRO

Part Description: Not Available

Connector No: D851A

Option: Standard

Repair Kit Part Number: See StarParts

Cavity Count: 5

Fig 1: Relay-Run/accessory 1 Connector End View (Standard)

Courtesy of CHRYSLER

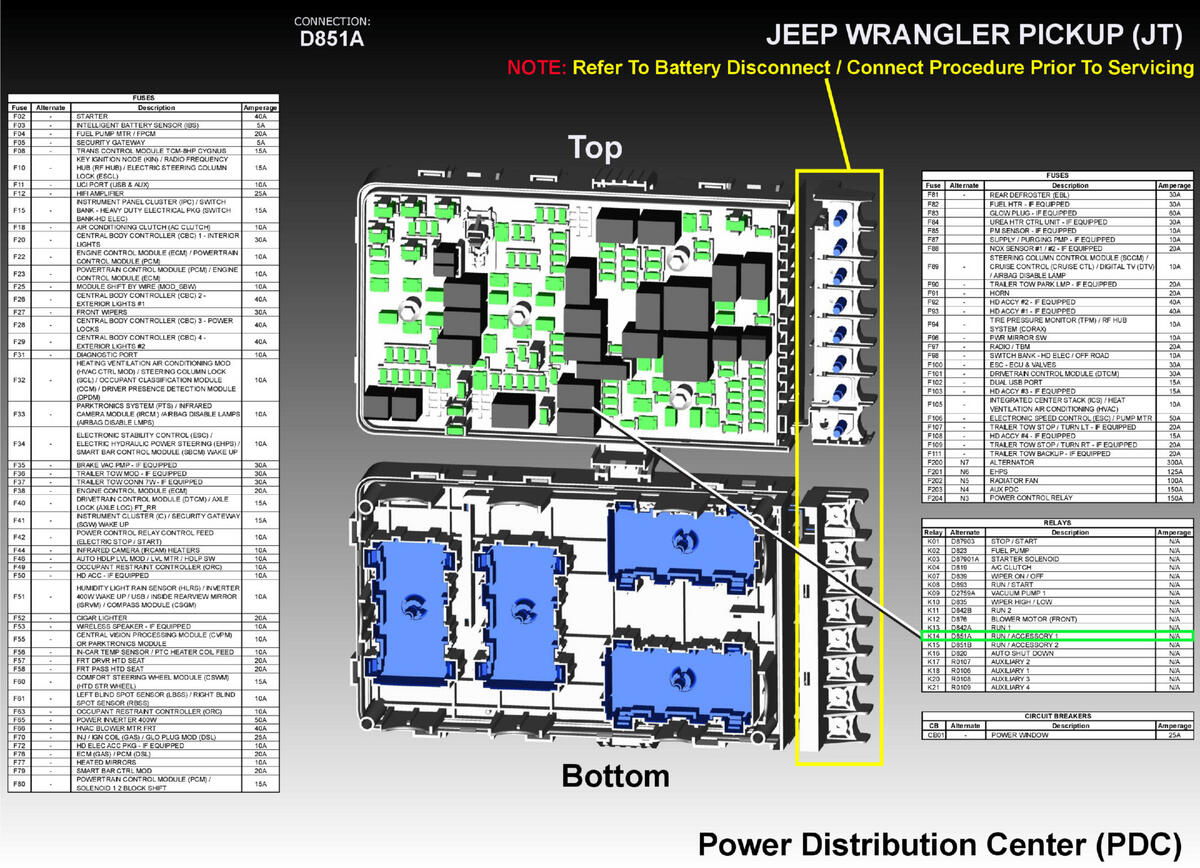

Fig 2: Relay-Run/accessory 1 Component Location View (Standard)

Courtesy of CHRYSLER

Pin	Circuit	Wire Color	Gauge/Size	Function	Option
30	A0	INTERNAL	NA	FUSED B(+)	N/A
85	Z906	INTERNAL	NA	GROUND	N/A
86	P305	INTERNAL	NA	ACCESSORY DELAY RELAY CONTROL	N/A
87	F781	INTERNAL	NA	IGNITION RUN ACC	N/A
