Relay-Rear Window Defogger (On PCB) (Standard) Connector End View (D821)

Harness-Family: PDC_Underhood

Color: NA

Gender: FEMALE

Part Number: NON-SERVICEABLE-PCB

Part Description: Not Available

Connector No: D821

Option: Standard

Repair Kit Part Number: Not Serviced

Cavity Count: N/A

Fig 1: Relay-Rear Window Defogger (on Pcb) Connector End View (Standard)

Courtesy of CHRYSLER

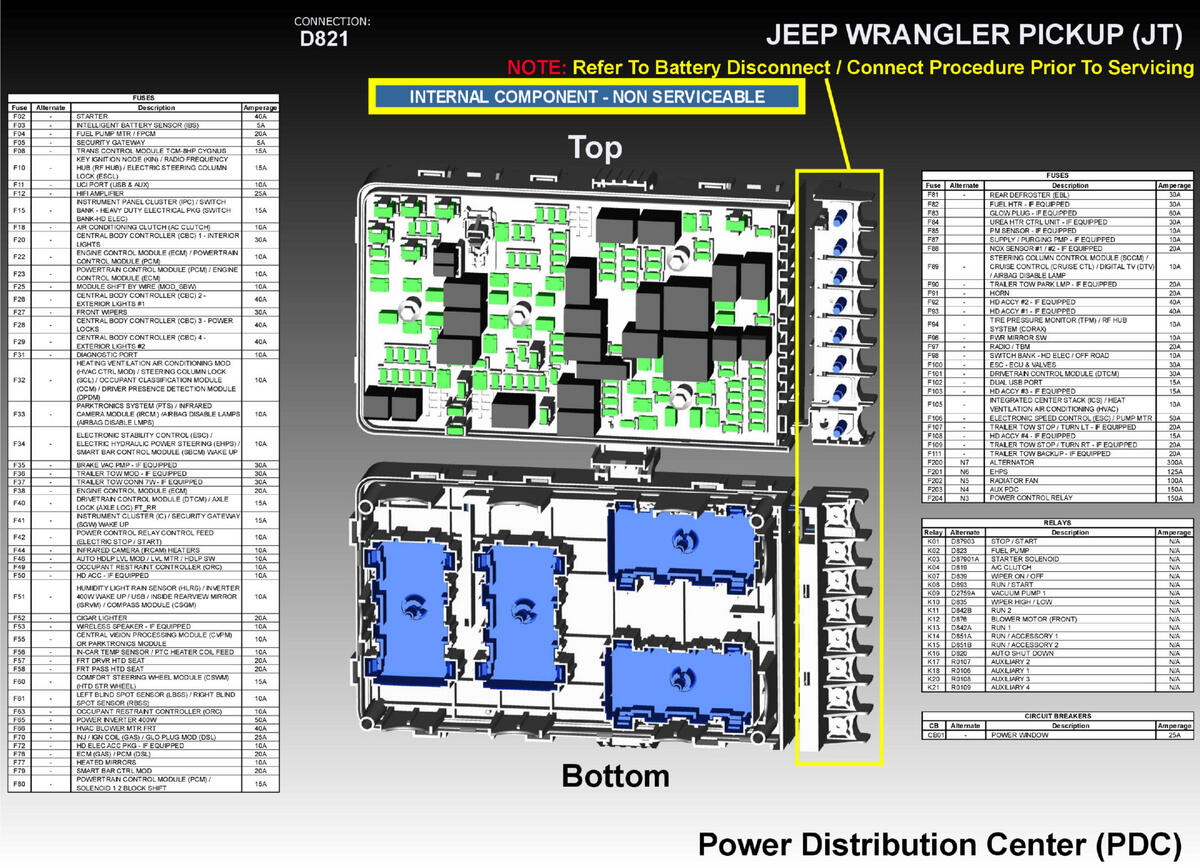

Fig 2: Relay-Rear Window Defogger (on Pcb) Component Location View (Standard)

Courtesy of CHRYSLER

Pin	Circuit	Wire Color	Gauge/Size	Function	Option
1	A0	INTERNAL	NA	FUSED B(+)	N/A
2	A0	INTERNAL	NA	FUSED B(+)	N/A
3	Z906	INTERNAL	NA	GROUND	N/A
4	C515	INTERNAL	NA	REAR WINDOW DEFOGGER RELAY OUTPUT	N/A
5	C515	INTERNAL	NA	REAR WINDOW DEFOGGER RELAY OUTPUT	N/A
6	C115	INTERNAL	NA	DEFOGGER RELAY CONTROL	N/A
