Relay-Power Control C3 (RHD) Connector End View (D3157C)

Harness-Family: Battery

Color: NA

Gender: FEMALE

Part Number: R8367-6

Part Description: Not Available

Connector No: D3157C

Option: RHD

Repair Kit Part Number: Not Available

Cavity Count: 1

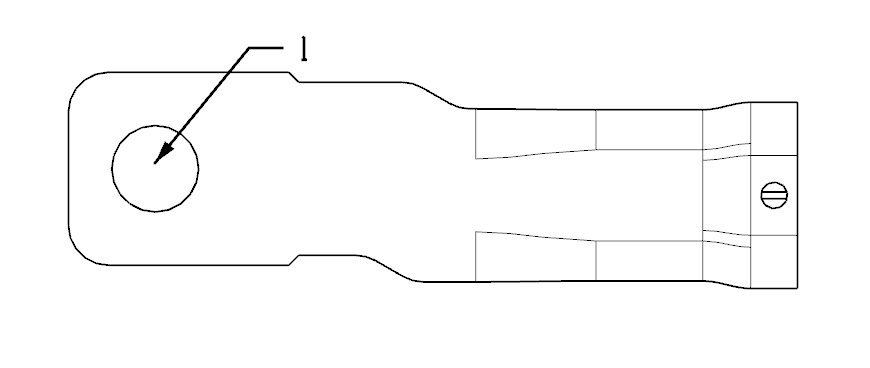

Fig 1: Relay-Power Control C3 Connector End View (RHD)

Courtesy of CHRYSLER

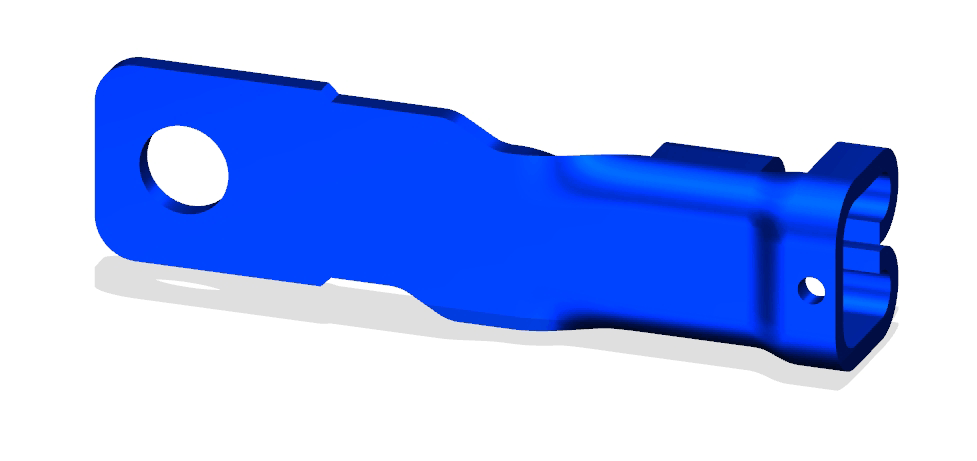

Fig 2: Relay-Power Control C3 Isometric View (RHD)

Courtesy of CHRYSLER
