Relay-Power Control C3 (LHD) Connector End View (D3157C)

Harness-Family: Battery

Color: NA

Gender: FEMALE

Part Number: R8367-6-B30UP

Part Description: Not Available

Connector No: D3157C

Option: LHD

Repair Kit Part Number: Not Serviced

Cavity Count: 1

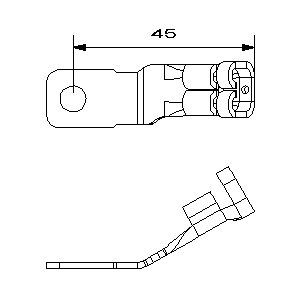

Fig 1: Relay-Power Control C3 Connector End View (LHD)
GCWD1319118Courtesy of CHRYSLER

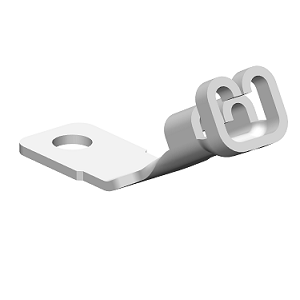

Fig 2: Relay-Power Control C3 Isometric View (LHD)
GCWD1318153Courtesy of CHRYSLER

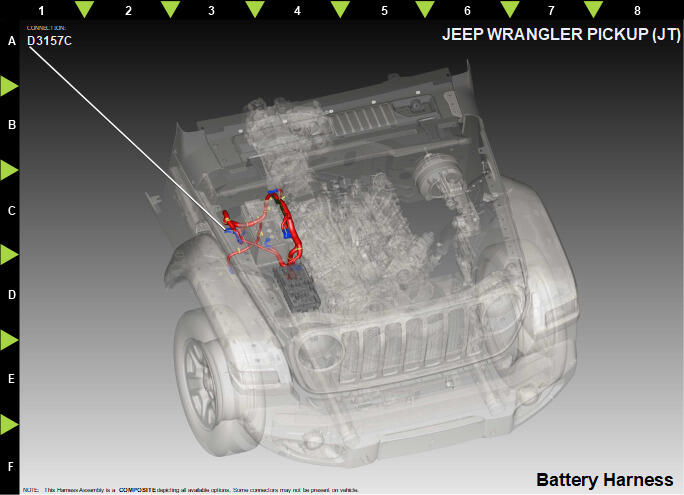

Fig 3: Relay-Power Control C3 Component Location View (LHD)
GCWD1318930Courtesy of CHRYSLER
Pin Circuit Wire Color Gauge/Size Function Option
1 A0 RD 20.0 FUSED B(+) N/A
