Relay-Power Control C2 (LHD) Connector End View (D3157B)

Harness-Family: Battery

Color: NA

Gender: FEMALE

Part Number: R8366-6-B30UP

Part Description: Not Available

Connector No: D3157B

Option: LHD

Repair Kit Part Number: Not Serviced

Cavity Count: 1

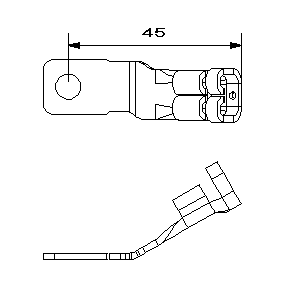

Fig 1: Relay-Power Control C2 Connector End View (LHD)
GCWD1318237Courtesy of CHRYSLER

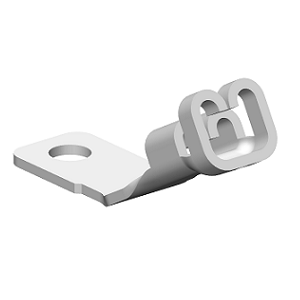

Fig 2: Relay-Power Control C2 Isometric View (LHD)
GCWD1318334Courtesy of CHRYSLER

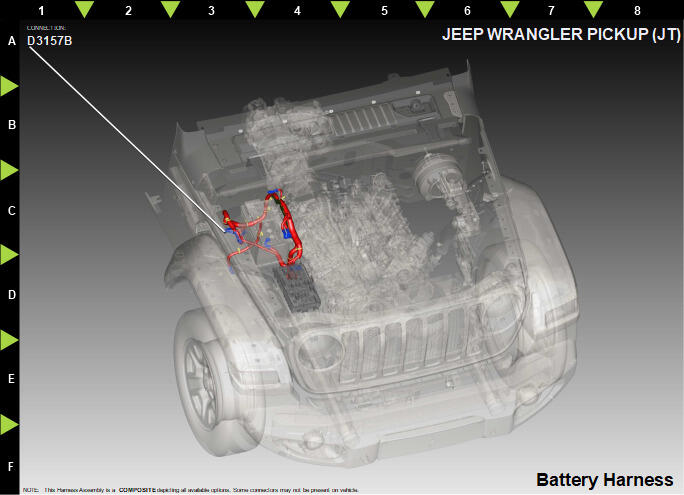

Fig 3: Relay-Power Control C2 Component Location View (LHD)
GCWD1318929Courtesy of CHRYSLER
Pin Circuit Wire Color Gauge/Size Function Option
1 A702 RD 20.0 FUSED B(+) N/A
