Relay-PTC 3 (Standard) Connector End View (D872)

Harness-Family: Aux_PDC_Underhood

Color: NA

Gender: MALE

Part Number: Relay_Mini

Part Description: Not Available

Connector No: D872

Option: Standard

Repair Kit Part Number: See StarParts

Cavity Count: 5

Fig 1: Relay-Ptc 3 Connector End View (Standard)
GCWD1006348Courtesy of CHRYSLER

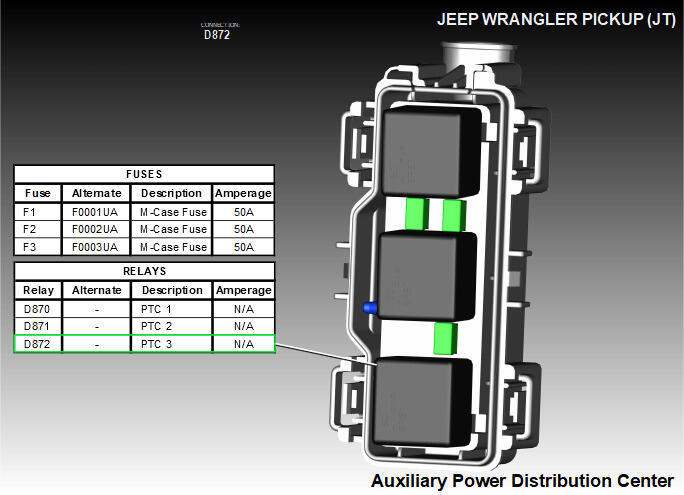

Fig 2: Relay-Ptc 3 Component Location View (Standard)
GCWD1318982Courtesy of CHRYSLER
Pin Circuit Wire Color Gauge/Size Function Option
30 A284 INTERNAL NA FUSED B(+) N/A
85 F925 INTERNAL NA FUSED IGNITION RUN CONTROL OUTPUT N/A
86 K363 INTERNAL NA PTC 3 RELAY CONTROL N/A
87 F288 INTERNAL NA FUSED CABIN HEATER 3 SUPPLY N/A
