Relay-PTC 2 (Standard) Connector End View (D871)

Harness-Family: Aux_PDC_Underhood

Color: NA

Gender: MALE

Part Number: Relay_Mini

Part Description: Not Available

Connector No: D871

Option: Standard

Repair Kit Part Number: See StarParts

Cavity Count: 5

Fig 1: Relay-Ptc 2 Connector End View (Standard)

Courtesy of CHRYSLER

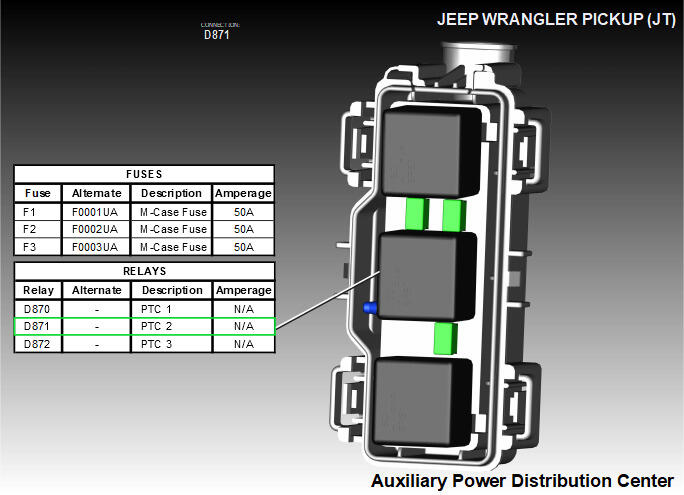

Fig 2: Relay-Ptc 2 Component Location View (Standard)

Courtesy of CHRYSLER

Pin	Circuit	Wire Color	Gauge/Size	Function	Option
30	A289	INTERNAL	NA	FUSED B(+)	N/A
85	F925	INTERNAL	NA	FUSED IGNITION RUN CONTROL OUTPUT	N/A
86	K361	INTERNAL	NA	PTC 2 RELAY CONTROL	N/A
87	F286	INTERNAL	NA	FUSED CABIN HEATER 2 SUPPLY	N/A
