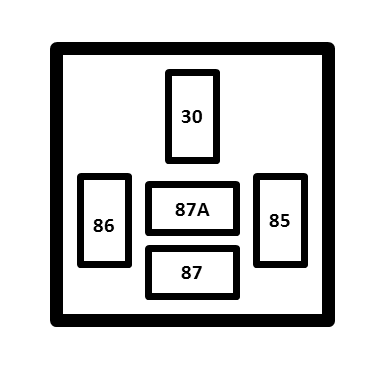

Relay-PTC 1 (Standard) Connector End View (D870)

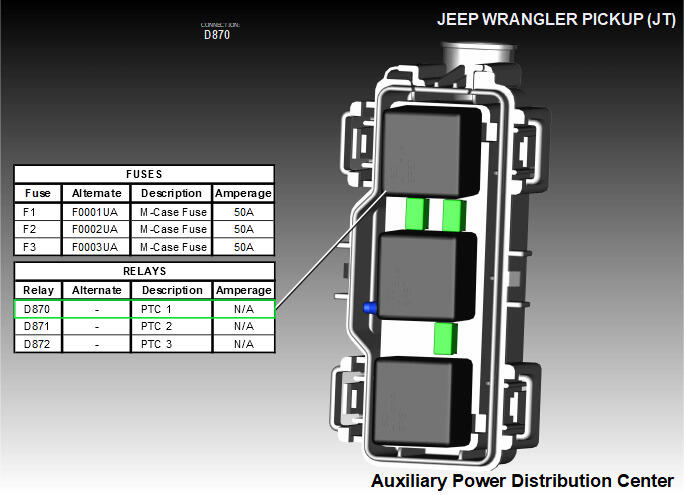

Harness-Family: Aux_PDC_Underhood
Color: NA
Gender: MALE
Part Number: Relay_Mini
Part Description: Not Available
Connector No: D870
Option: Standard
Repair Kit Part Number: See StarParts
Cavity Count: 5
| Pin | Circuit | Wire Color | Gauge/Size | Function | Option |
|---|---|---|---|---|---|
| 30 | A283 | INTERNAL | NA | FUSED B(+) | N/A |
| 85 | F925 | INTERNAL | NA | FUSED IGNITION RUN CONTROL OUTPUT | N/A |
| 86 | K360 | INTERNAL | NA | PTC 1 RELAY CONTROL | N/A |
| 87 | F285 | INTERNAL | NA | FUSED CABIN HEATER 1 SUPPLY | N/A |
